3-12
b) Remove the door latch from the burner
box and unhook the actuating rod.
5. To remove the door switch:
a) If not already done, raise the cooktop
(see page 3-8 for the procedure).
b) Remove the four screws from the right
mounting plate and remove the plate.

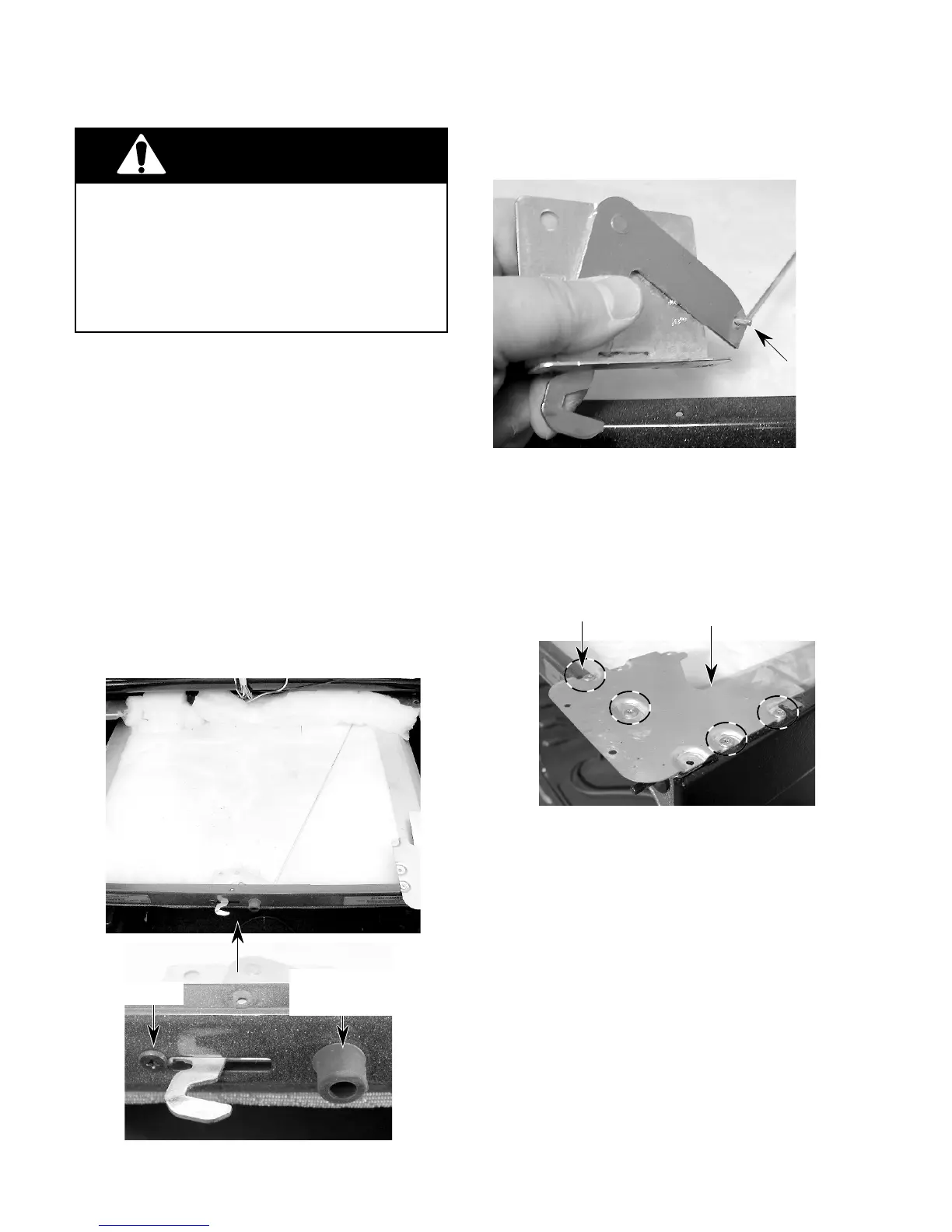

REMOVING THE DOOR LATCH & THE DOOR SWITCH
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
CAUTION: When you work on the electric
range, be careful when handling the sheet
metal parts. Sharp edges may be present, and
you can cut yourself if you are not careful.
WARNING
1. Turn off the electrical supply going to the
range.
2. Open the oven door.
3. Raise the cooktop (see page 3-8 for the
procedure).
4. To remove the door latch:
a) Remove the two screws and rubber
bumper from the door latch and remove
the latch.
Screw &
Rubber Bumper
Screw
Unhook
Actuating
Rod
Screw (1 of 4)
Right Mounting Plate
To Next Page
