Whirlpool RF196LXK - Bake Element Testing; Broil Element Testing

4-2
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
Refer to page 3-14 for the procedure for servic-
ing the bake element.
1. Disconnect the electrical power to the
range.
2. Set the ohmmeter to the R x 1 scale.
3. Touch one of the ohmmeter leads to the
bake element terminals. The meter should
indicate between 20 and 28 Ω.

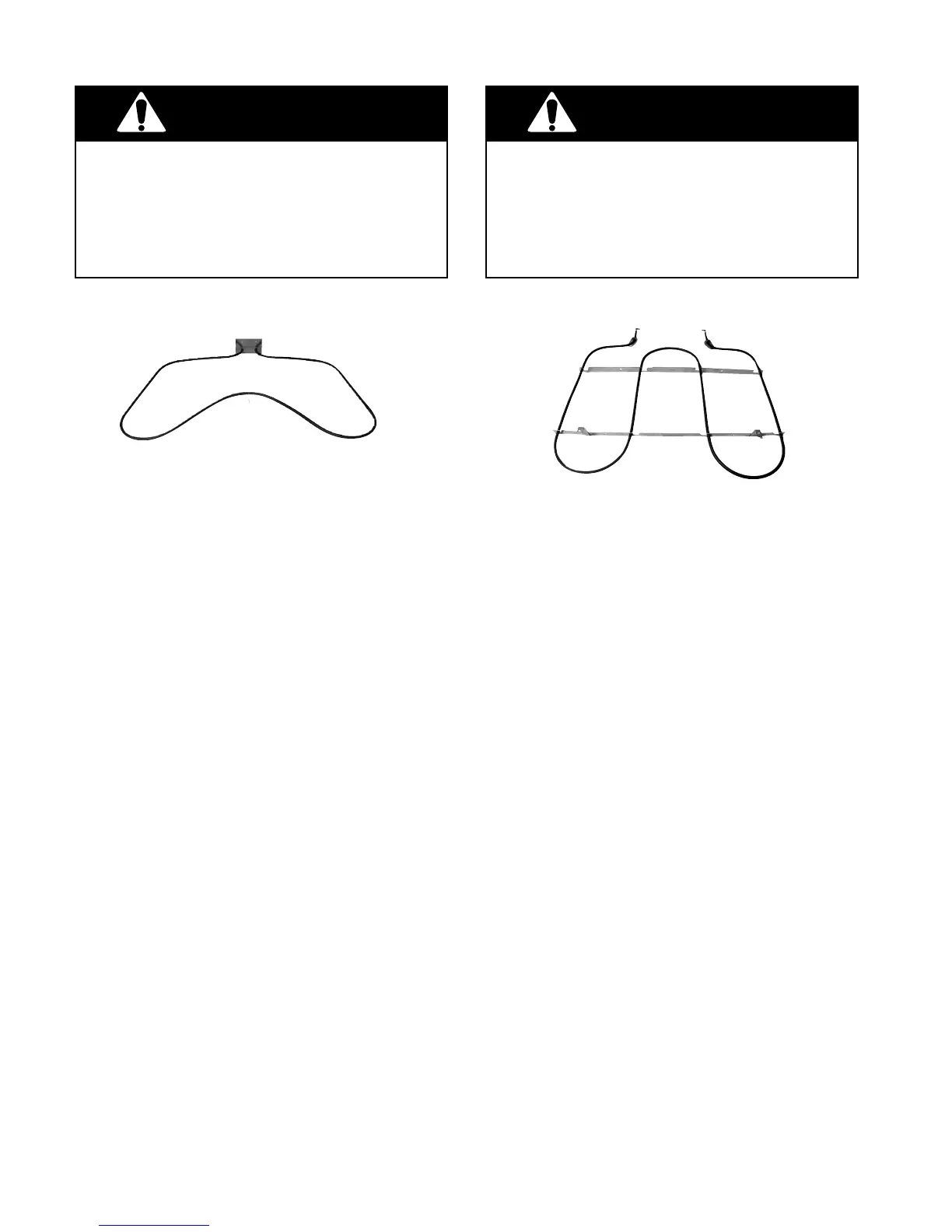

BAKE ELEMENT
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
Refer to page 3-14 for the procedure for servic-
ing the broil element.
1. Disconnect the electrical power to the
range.
2. Set the ohmmeter to the R x 1 scale.
3. Touch one of the ohmmeter leads to the
broil element terminals. The meter should
indicate between 14 and 21 Ω.
BROIL ELEMENT
