3-17

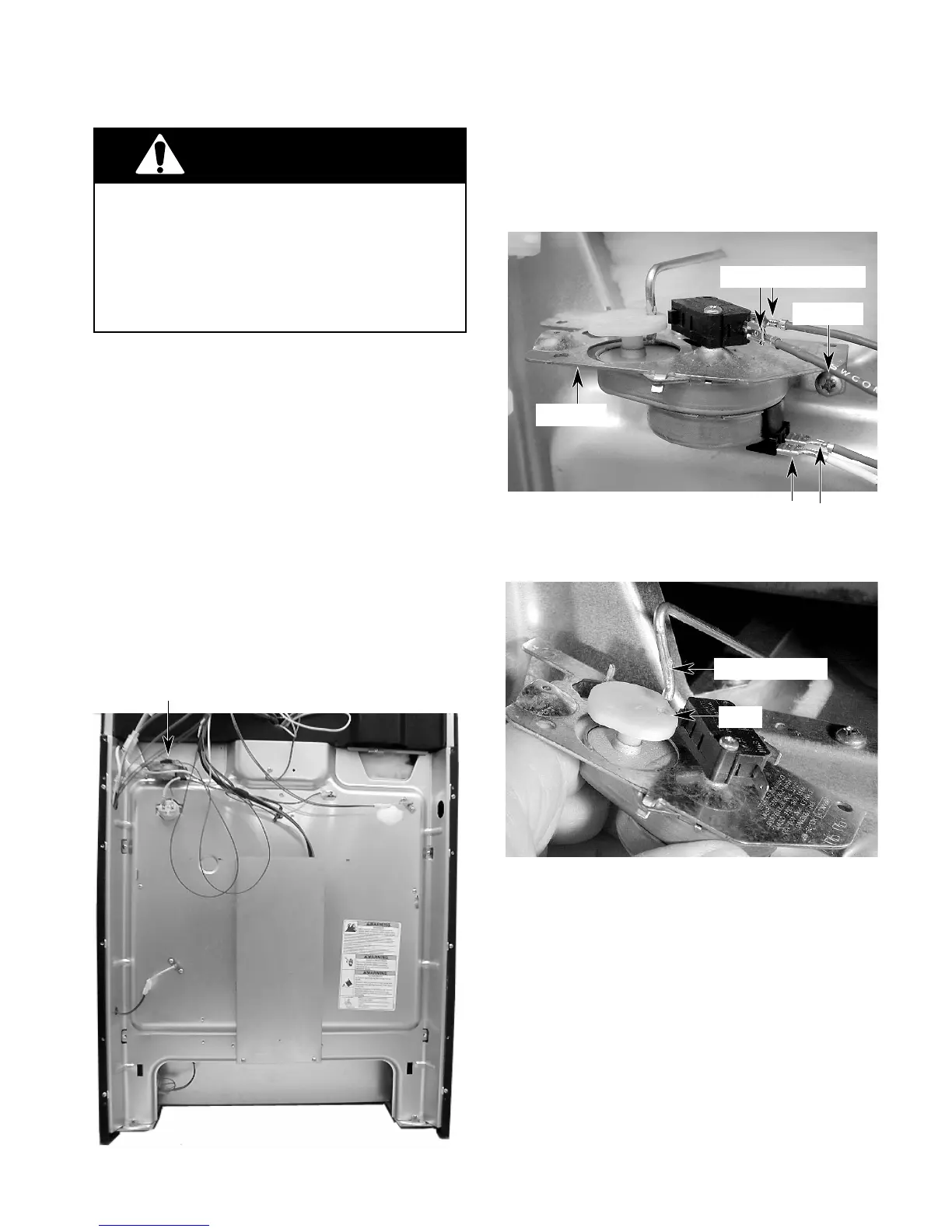

REMOVING THE LATCH DRIVE ASSEMBLY
5. Disconnect the wires from the latch drive
motor and switch.
6. Remove the two mounting screws from
the latch drive.
Actuating Rod
Cam
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
WARNING
1. Turn off the electrical supply going to the
range.
2. Open the oven door and remove the racks
from the oven.
3. Pull the range away from the wall so that
you can access the rear panel.
4. Remove the eight screws from the rear
panel and remove the panel (see step 4 on
page 3-2).
CAUTION: When you work on the electric
range, be careful when handling the sheet
metal parts. Sharp edges may be present, and
you can cut yourself if you are not careful.
Latch Drive Assembly
7. Unhook the actuating rod from the cam.
Switch Terminals
Screw
Motor Terminals
Screw
To Next Page
