Whirlpool RF196LXK - Keep Warm Switch Testing

4-6

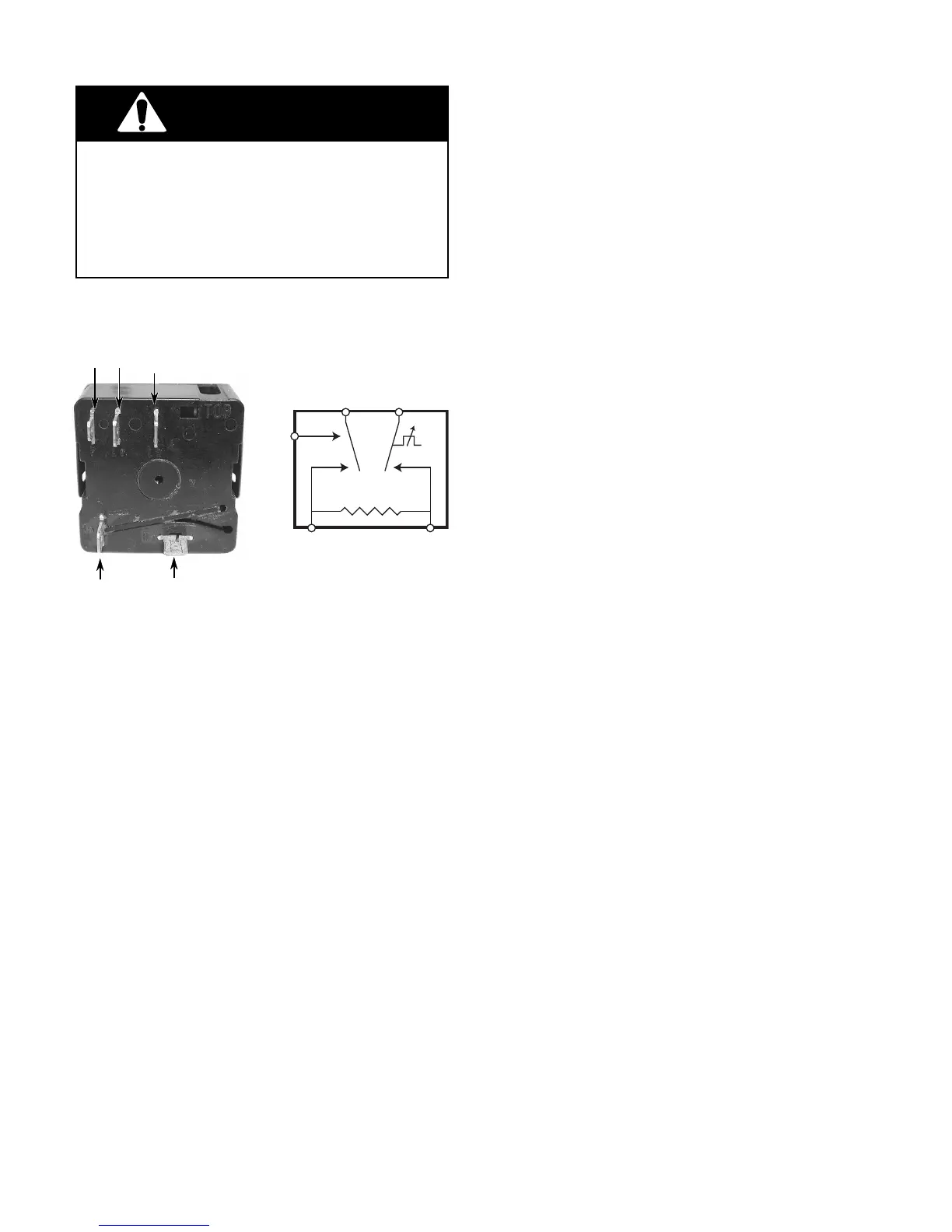

KEEP WARM SWITCH (CR)
Refer to page 3-5 for the procedure for servic-
ing the Keep Warm switch.
1. Disconnect the electrical power to the
range.
2. Set the ohmmeter to the R X 1K scale.
3. Turn the Keep Warm switch to the On
position.
4. Touch the ohmmeter test leads to termi-
nals L1 and P. The meter should indicate
continuity (0 Ω).
5. Touch the ohmmeter test leads to termi-
nals L1 and H1. The meter should indicate
continuity (0 Ω).
6. Touch the ohmmeter test leads to termi-
nals L2 and H2. The meter should indicate
continuity (0 Ω).
P
L1
H2
L2
H1
BU BK
WH
GY GY
L1
P
L2
H1
H2
Black
White
Blue
Gray
Gray
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing.
Replace all panels before operating.
Failure to do so could result in death or
electrical shock.
WARNING
