REMOVING THE OVEN LIGHT SOCKET ASSEMBLY
1. Turn off the electrical supply going to the
range.
2. Open the oven door and remove the racks
from the oven.
3. Unscrew the lens and bulb from the oven
light socket assembly and remove them.
CAUTION: Be careful not to scratch or chip the
oven liner paint when you remove the oven
light socket in the next step.
4. Use a screwdriver and bend the clips on
the oven light socket away from the edges
of the liner hole, and pull the socket out of
the liner. NOTE: If it is too difficult to re-
move the socket from the front of the oven,
you will have to push the socket out from
the back of the unit.
5. Disconnect the wires from the socket ter-
minals.

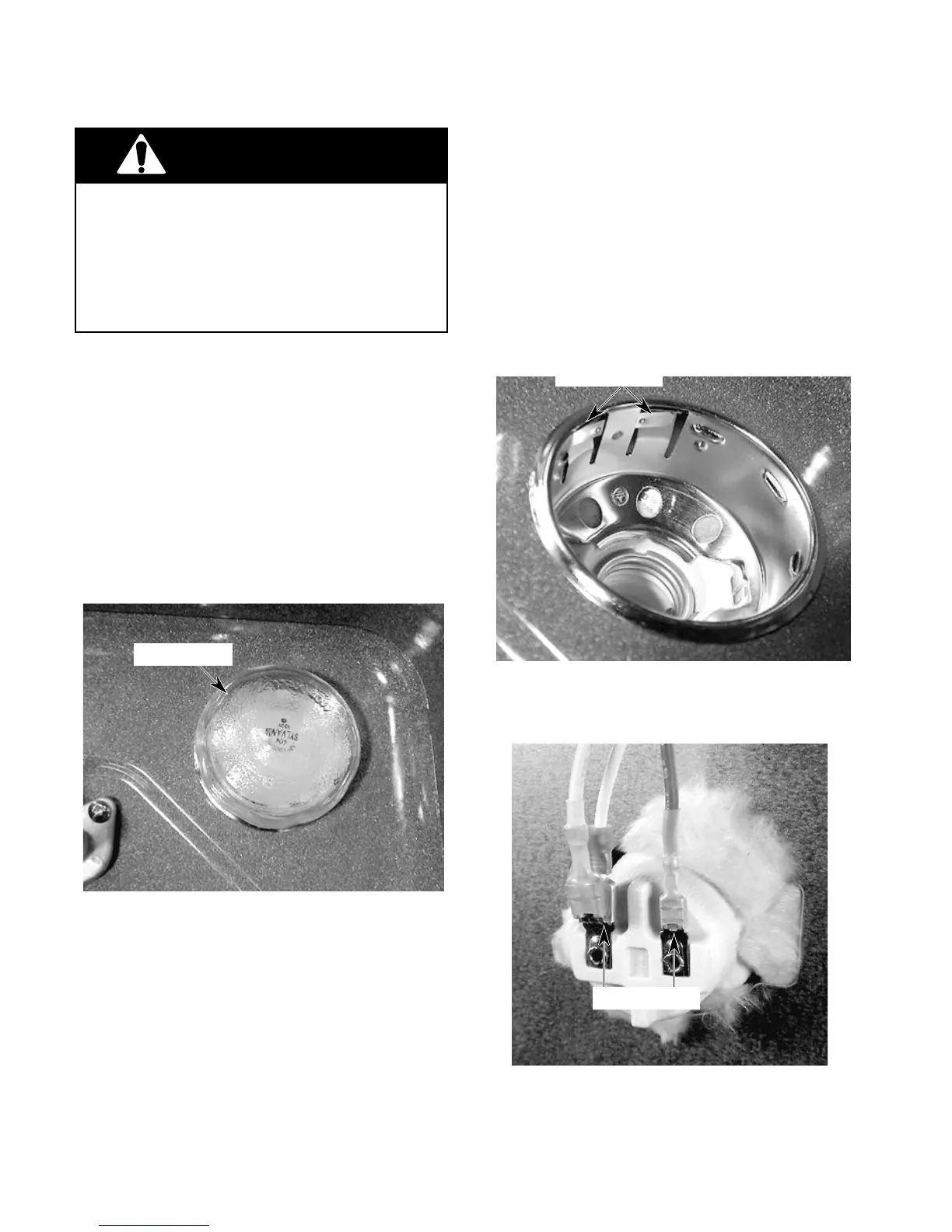

Socket Clips
Lens & Bulb
(Viewed From Rear Panel)
Socket Wires
ELECTRICAL SHOCK HAZARD
Disconnect power before servicing the range.
Replace all panels before operating range.
Failure to do so can result in death or electri-
cal shock.
WARNING
CAUTION: When you work on the electric
range, be careful when handling the sheet
metal parts. Sharp edges may be present, and
you can cut yourself if you are not careful.
