5.4.4 Local maneuvering stand
The local maneuvering stand has the local control panel (001, Figure 5-25) and is attached to
the engine at the free end. The local control panel has the components necessary for engine
operation. Some components can look different because the remote control manufacturer
supplies the local control panel (001).
For data about maneuvering instructions, refer to section 8.8 Maneuver the ship - general.

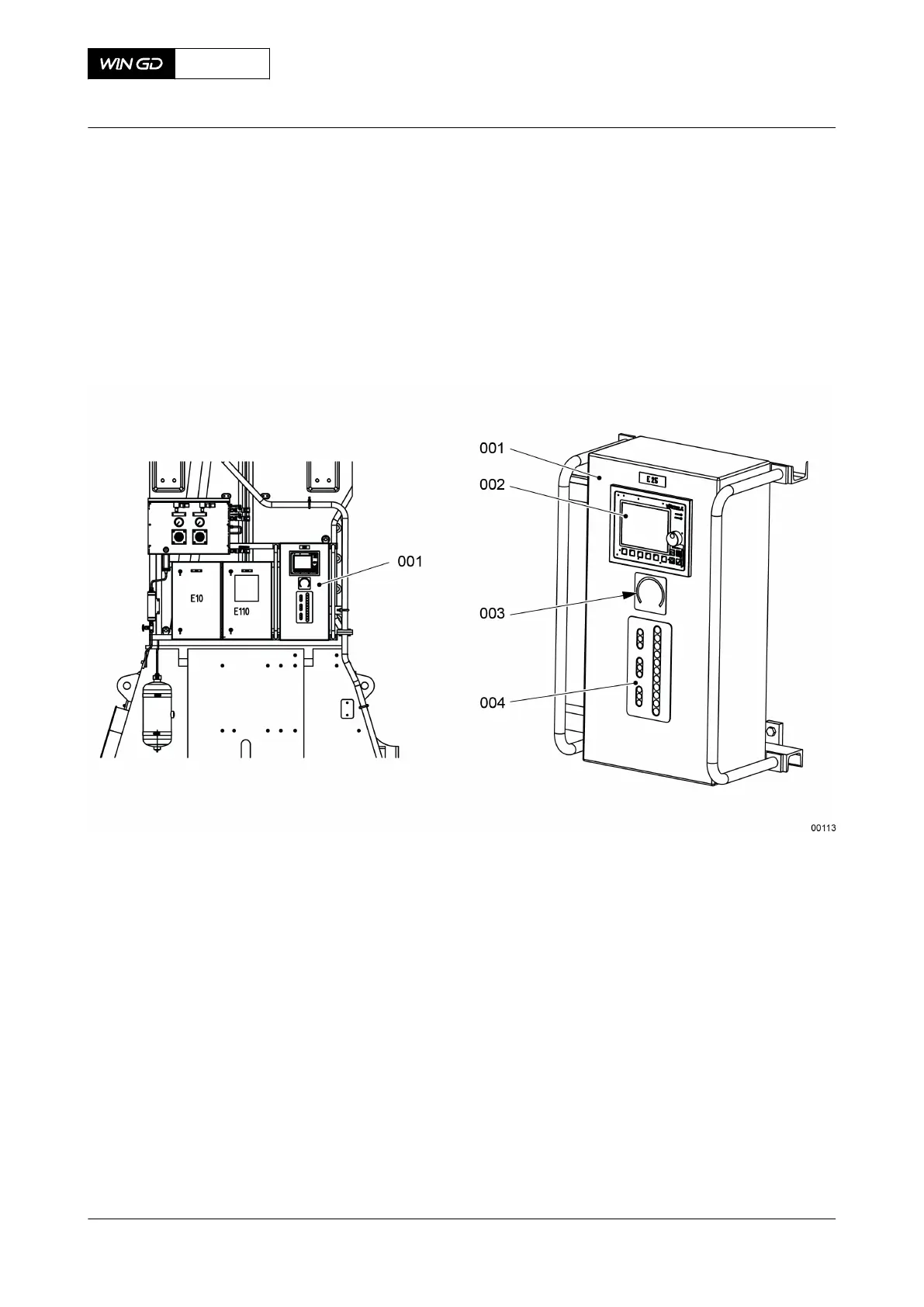

Fig 5-25 Local maneuvering stand (generic)
Legend
001 Local control panel 003 Main engine tachometer
002 LDU-20 004 Telegraph receiver
X35-B
AA00-4618-00AAA-043A-A
Operation Manual Local maneuvering stand
Winterthur Gas & Diesel Ltd.
- 178 - Issue 001 2019-10
