5.9 Group 9 - Monitoring instruments
5.9.1 Crank angle sensor unit
The crank angle sensor unit is installed on the supply unit drive at the driving end.
There are two crank angle systems that monitor the teeth on the intermediate wheel. The two
sets of proximity sensors (003, Figure 5-43) operate independently to sense the teeth on the
intermediate wheel (002).

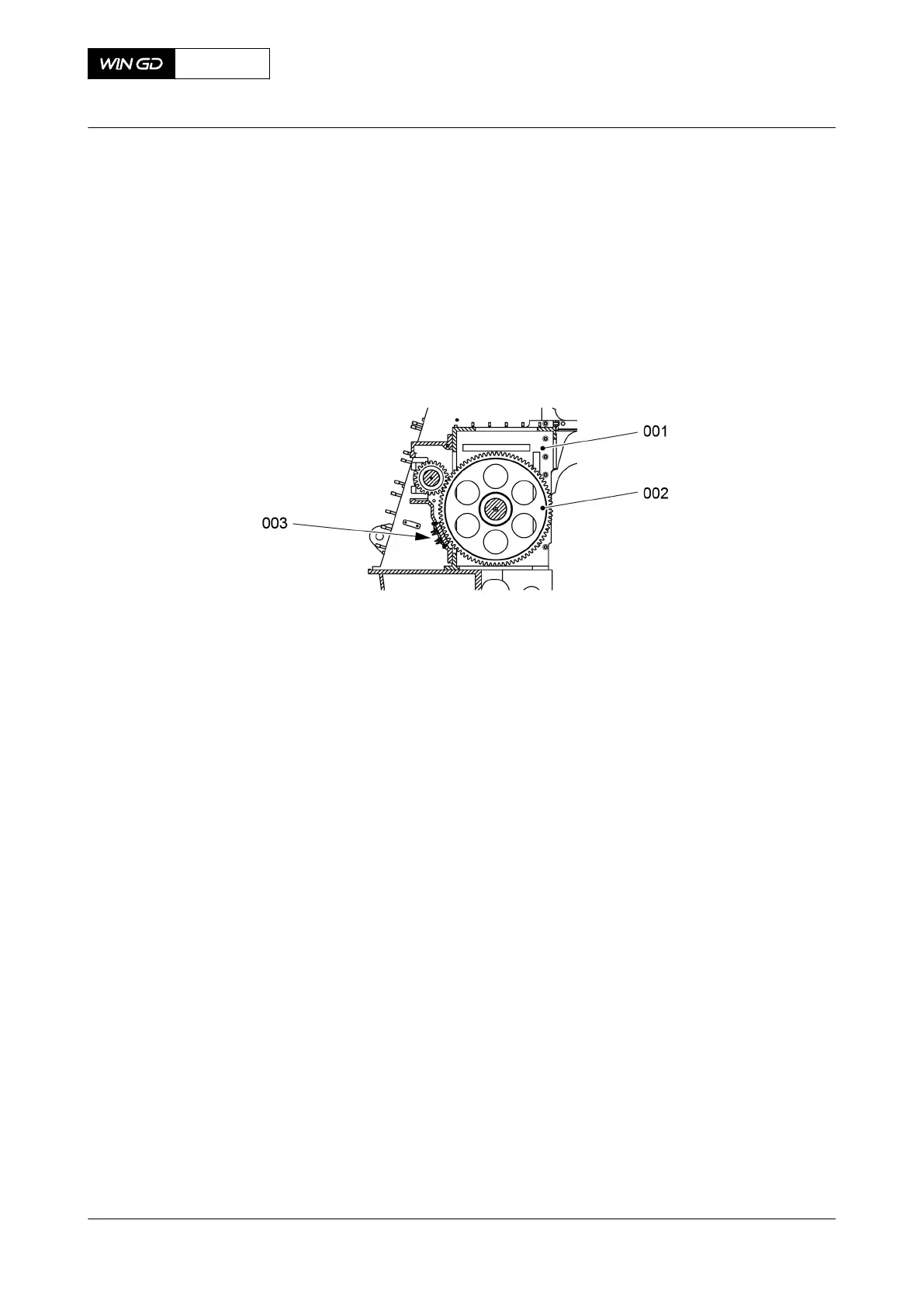

Fig 5-43 Crank angle sensor unit on intermediate wheel (example)
Legend
001 Supply unit 003 Proximity sensor
002 Intermediate wheel
X35-B
AA00-9223-00AAA-043A-A
Operation Manual Crank angle sensor unit
Winterthur Gas & Diesel Ltd.
- 210 - Issue 001 2019-10
