5.6.4 Auxiliary blower switch box
The auxiliary blower switch box controls and gives data about the condition of the auxiliary
blowers.

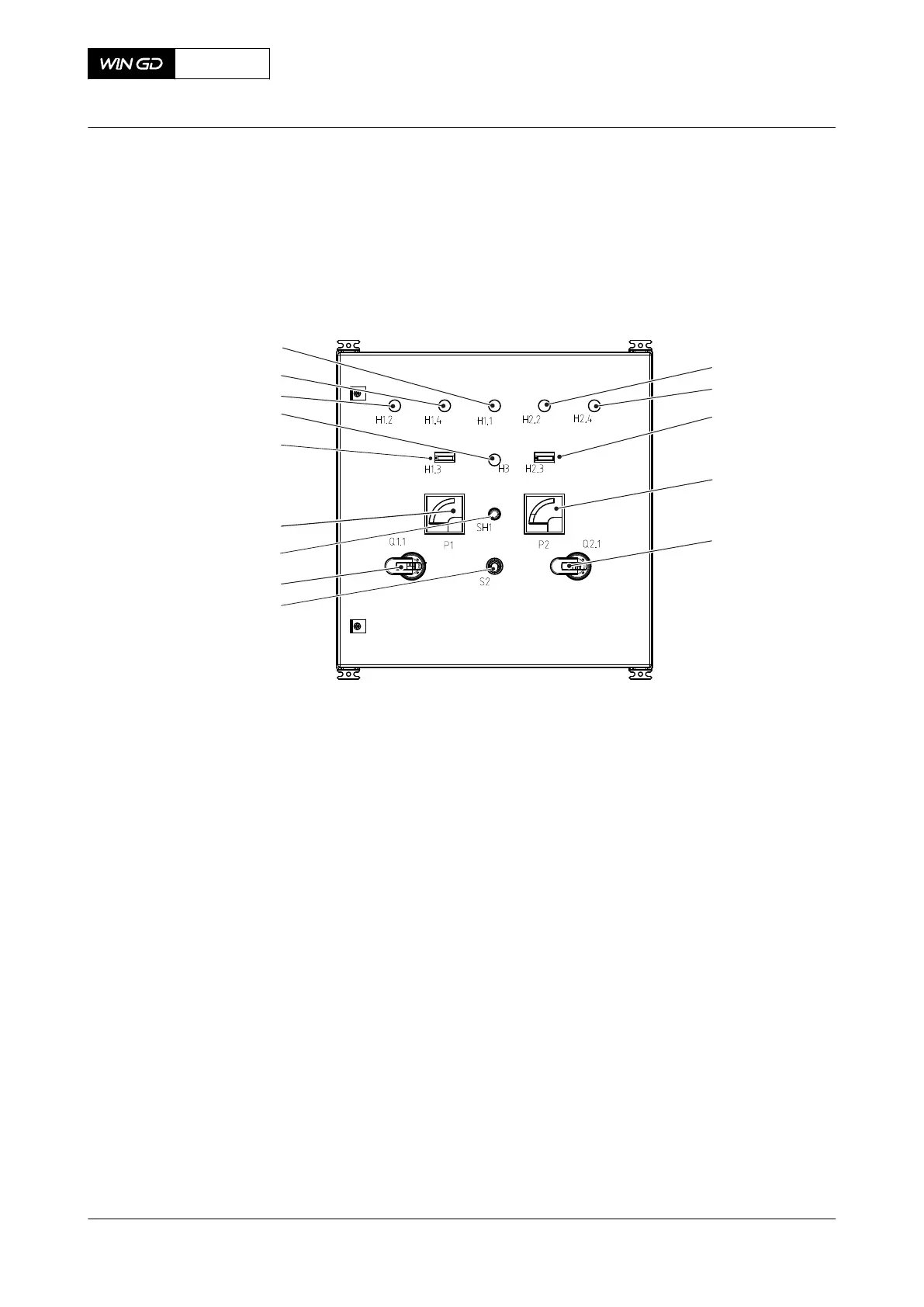

Fig 5-37 Switch box (generic)
001
002
003
004
005
006
007
008
009
010
011
012
013
014
Legend
001 Indicator (auxiliary blower No. 2 running) 008 Restart push button
002 Indicator (auxiliary blower No. 2 overload) 009 Ampere meter (auxiliary blower No. 1)
003 Hour counter (auxiliary blower No. 2) 010 Hour counter (auxiliary blower No. 1)
004 Ampere meter (auxiliary blower No. 2) 011 Supply fault indicator
005 Main switch (auxiliary blower No. 2) 012 Indicator (auxiliary blower No. 1 running)
006 Emergency push button 013 Indicator (auxiliary blower No. 1 overload)
007 Main switch (auxiliary blower No. 1) 014 Control voltage indicator
