WinGD X35-B - Exhaust Waste Gate (Example)

PROCEDURE

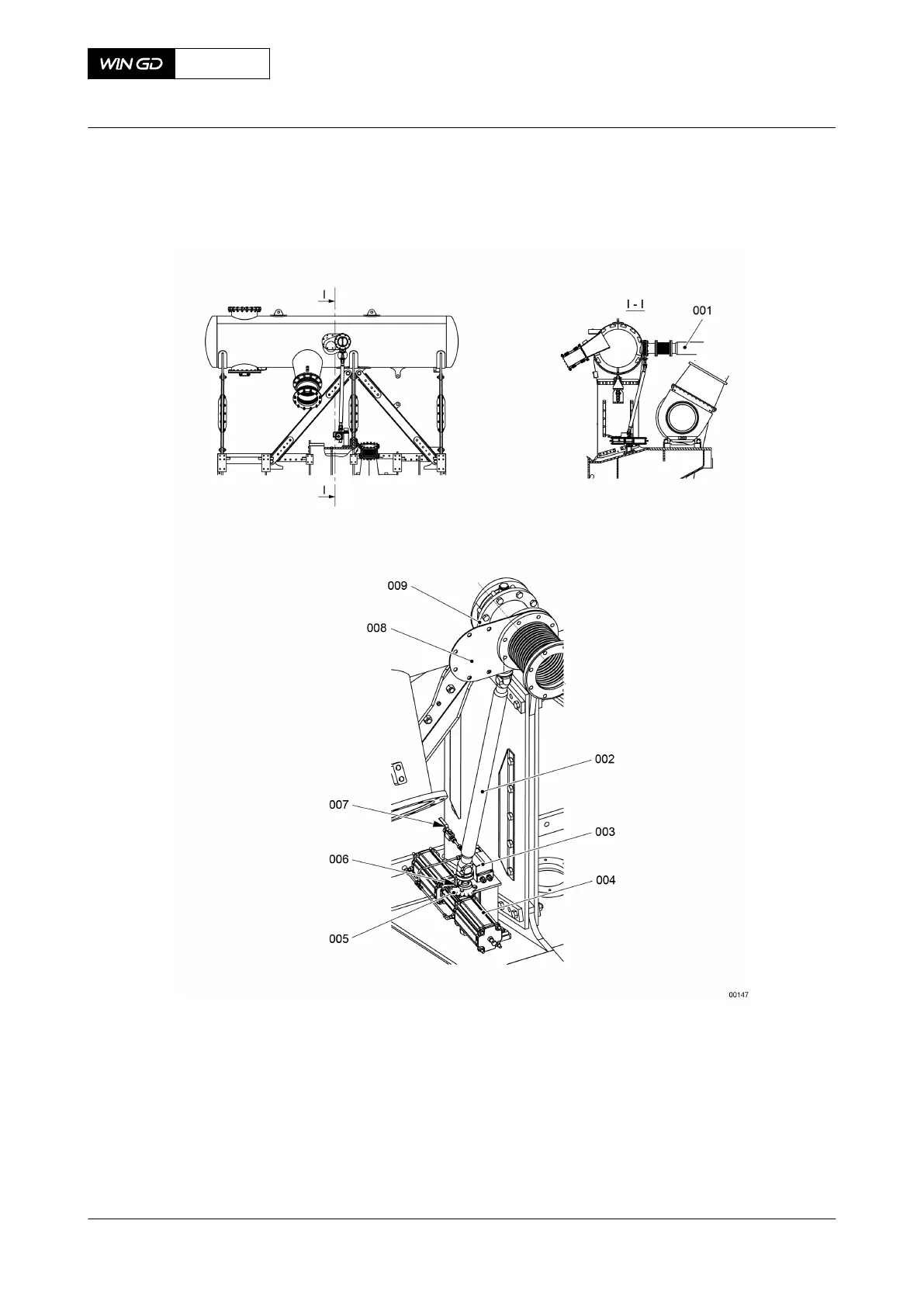

Fig 10-7 Exhaust waste gate (example)
Legend
001 Exhaust gas manifold 006 Indicator
002 Cardan rod 007 Ball valve 50-8135_E0_3 (air spring air)
003 Positioner and feedback with EMC module 008 Flange
004 Actuator 009 Valve
005 Plate
X35-B
AA00-8135-00AAA-662A-A
Operation Manual Temporary isolate the exhaust waste gate
Winterthur Gas & Diesel Ltd.
- 415 - Issue 001 2019-10
