5.7 Group 7 - Cylinder lubrication
5.7.1 Cylinder lubrication
For more data about the cylinder oil system, refer to section 4.6 Cylinder oil system.
5.7.1.1 Cylinder lubricating pump
Each cylinder has a cylinder lubricating pump. The cylinder lubricating pumps are connected to
the distributor pipe (mini-rail) in the rail unit.
Servo oil from the distributor pipe (mini-rail) operates the cylinder lubricating pumps when the
related control signals are released from the ECS.
When the ECS sends a signal to the related solenoid valve (004, Figure 5-40) of the cylinder
lubricating pump, the solenoid valve (004) operates. Then a specified quantity of cylinder oil
flows through the oil outlets (001) to the related lubricating quills.
Each cylinder lubricating pump has two bushes for different feed rates:
•
The low feed rate (LFR) bush is installed on the adjustment screw.
•
The high feed rate (HFR) bush is installed in the storage position.

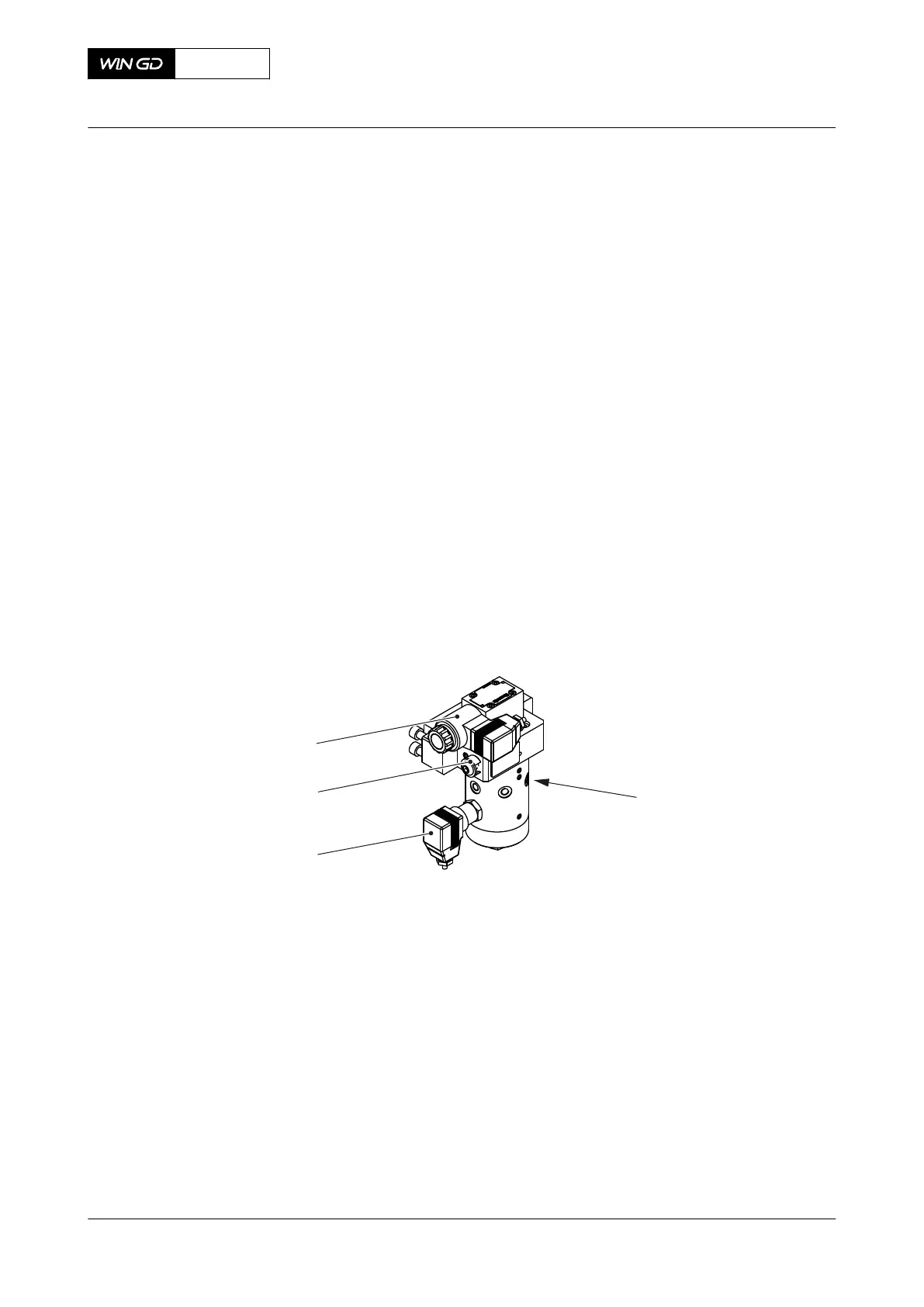

Fig 5-40 Cylinder lubricating pump (generic)
001
002
003
004
Legend
001 Oil outlet 003 Storage position for HFR bush
002 Pressure transmitter 004 Solenoid valve
