EN
Print-no. 504 474 4
01/2017
Installation, Operating and Maintenance
Instructions blueMatic EAV
34
Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de
Subject to technical changes
No. Terminals
1 red
„12 V DC“
2 black
„0 V DC“
3 serial interface
4 serial interface
5 white
Antenna
6 white
Antenna
7 green
potential free contact C
8 green
potential free contact NO

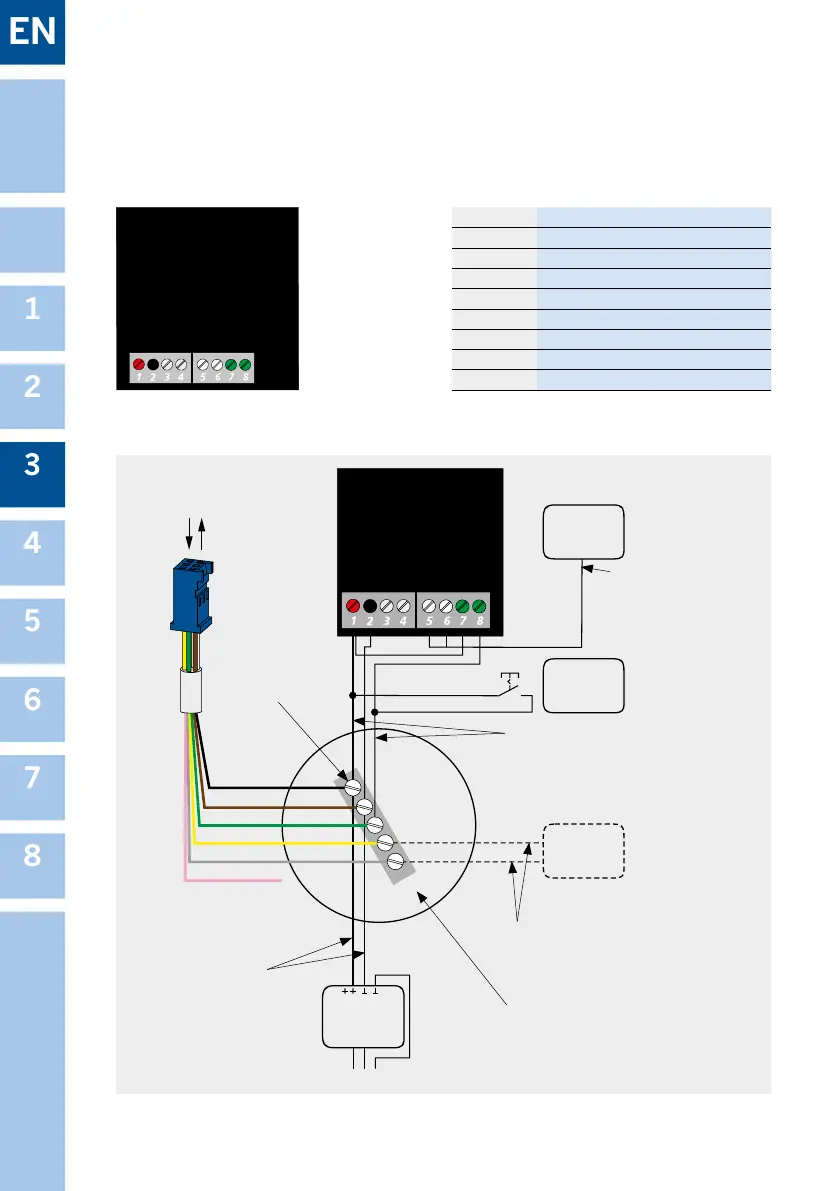

Figure 3.4-1: Terminal assignment of the transponder reader
Figure 3.4-2: Installation of the transponder reader
to/from the motor housing
or cable transition
Recommendation:
ush-type box or junction box for cable
connection
cable of 2 x 0.8 mm², length of max.
100 m (up to the last open button/
up to the last access control system)
length and cross section: specication
by the manufacturer of swing door
opener
e.g. Connector block
(via electrical con-
tractor)
Antenna
“Open”
button
Swing
door opener
(optional)
Power supply
12 V DC/2 A
cable of 2 x 0.8 mm²,
length of max. 40 m
[43.744 yd]
antenna cable ready-
made, 2.5 m xed at
the antenna, cable ter-
minals with wire and
bushes
white
brown
green
yellow
grey
pink free
(plus)
(minus)
230 V/50 Hz
N PE
L
