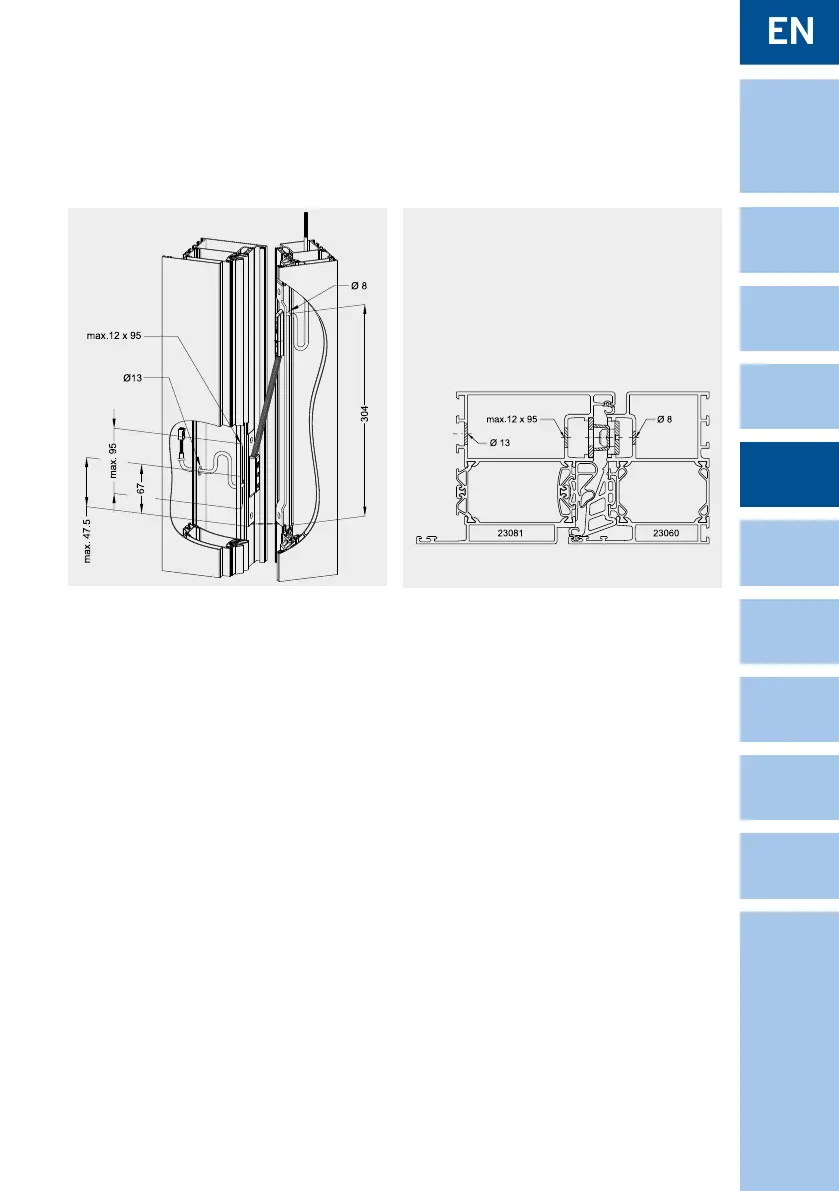

Figure 3.2-5: Routing dimensions for STV-KÜ-T1 FT and cover plate F24 (dimensions in mm)
Situation heroal D92 UD
3.3 Installations
DANGER!
The installation of electrical equipment requires expertise, thus such work should only
be carried out by qualied electricians.
DANGER!
Generally assemble and install only with the power o!
CAUTION!
The Door must easily lock mechanically before checking the electric function!
If you connect an intercom system take care that the button of this system is desig-
ned as a potential free contact! External voltage must not be transmitted from the
intercom system to the lock!
If the operating voltage has been applied (start-up), the motor brings the locking points
into the neutral position.
