NOTICE!
a) The routing for the main lock housing must be 16 mm as minimum to provide for
free motion of the drive rod! Check the door eurogroove for sprue so that the free
motion of the rod is not impeded!
b) It is imperative to use always with a lever/xed pad handle set (lever inside, door
knob outside)
3.2 Cable transition STV-KÜ-T1 FT (sash- + frame part)
Empfehlung: It is recommended that the cover plate
4
(depends on the faceplate and
the material type of timber, PVCu/plastic or aluminum) conceals the routing for the re-
quired cable reserves to prevent possible cable damage. For timber doors use the cover
pl
ate, to hide the routering for the cable hole, and to prevent cable damage. The routing
for this wire hole should be approx 50 x 95 mm.
Installation sequence
Frame part 1
2
(Figure 1):
• Drill a hole with a Ø 8 mm for cable through the
door frame
• Pass the cable through the door frame (inclu-
ding cable reserves in frame!)
• Fasten the frame part 1
2
with the tting
screw
5
Ø 3 x 20 mm
Frame part 2
3
(Figure 2):
• Drill a hole with a Ø 13 mm for cable/plug
through the door frame
• Pass the Cable with plug for frame power sup-
ply through the door frame (including cable re-
serves in frame!) use STV-COVERING KÜ-T1 RT
R8
• Fasten the frame part 2
3
with the tting
screw
5
Ø 3 x 20 mm

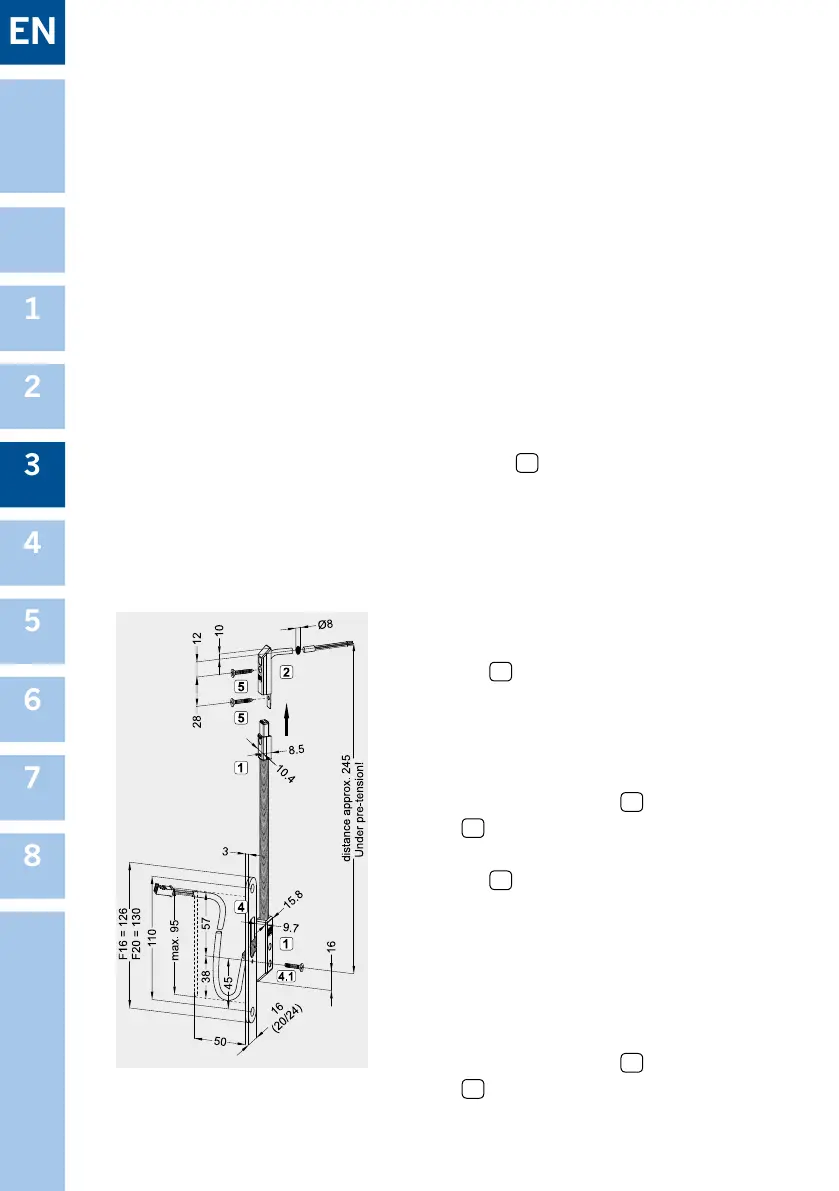

Figure 3.2-1: STV-KÜ-T1 FT with cover
plate and frame part 1
