Installation, Operating and Maintenance
Instructions blueMatic EAV
26
Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de
Subject to technical changes

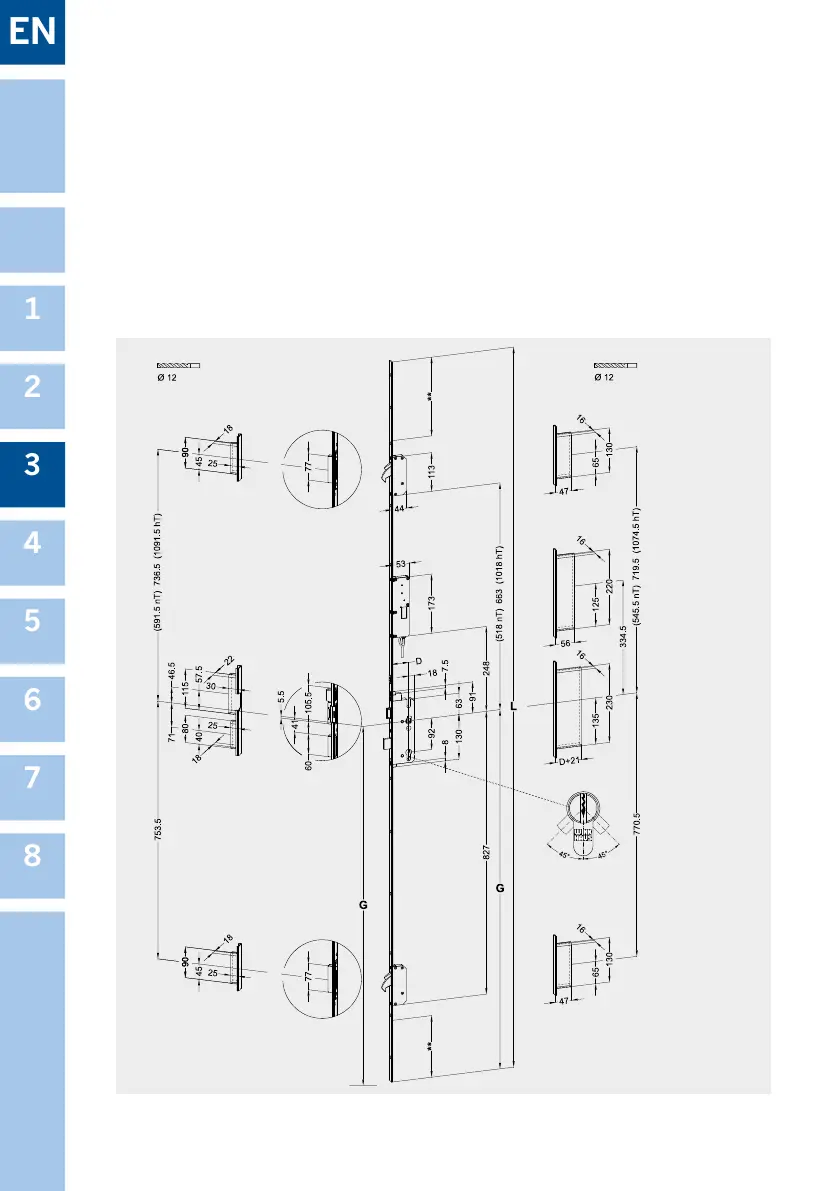

Figure 3.1-1: Dimensions for blueMatic EAV
3 Installation
3.1 Routing details
For installing the blueMatic EAV it is required to rout out for standard three-point lo-
cking system and additionally the motor housing, as shown in the following diagrams.
D = Backset
G = Handle position
L = Length
** = croppable
nT = low doors
hT = high doors
