Installation, Operating and Maintenance
Instructions blueMatic EAV
25
8

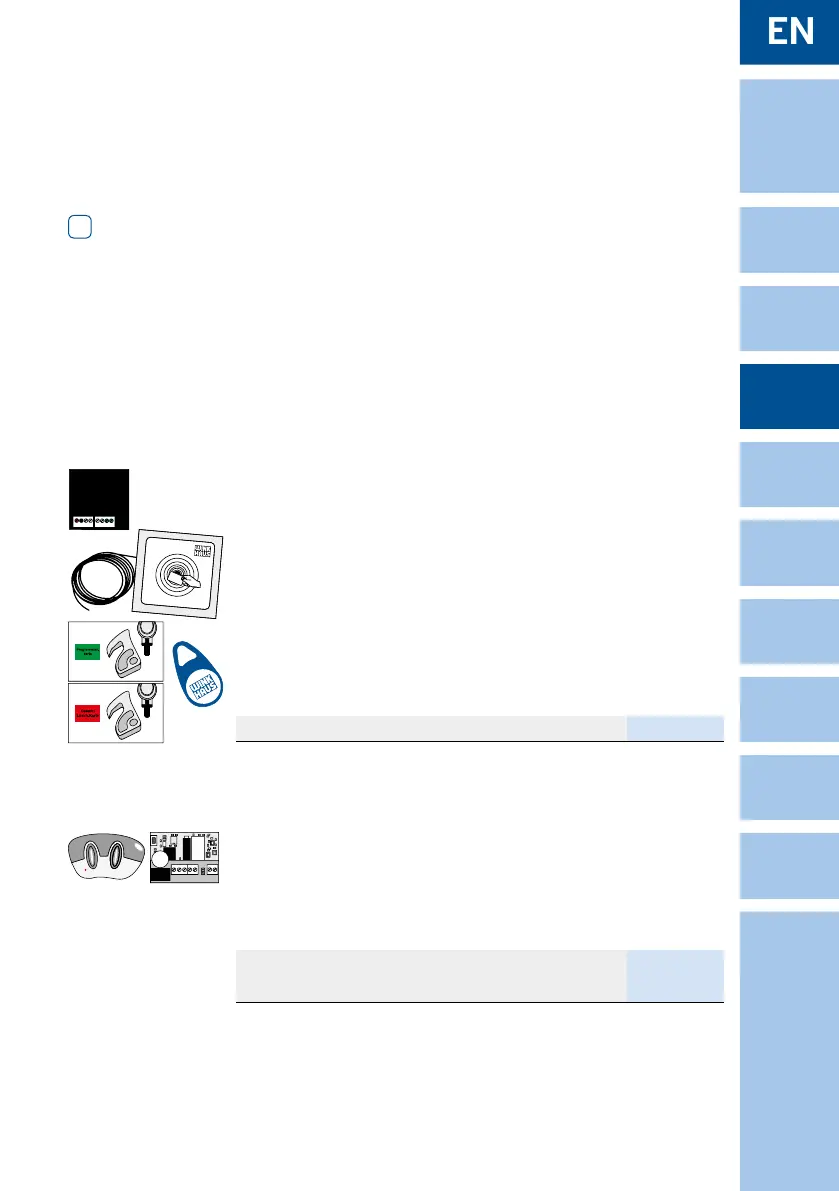

Access control systems
From the outside the door is opened via the access control system (transponder, wirel-
ess remote control).
NOTICE!
VdS acceptance: Only with VdS-tested access control systems!
Transponderset EAV
• 1 reader/control unit (for ush-type box)
- mounting of the reader on the inside
• 1 antenna for exposed installation (90 x 90 x 13 mm, color
white), cable of 2.5 m xed at the antenna
• 1 antenna sticker, weatherproof, resistant to UV light
- mounting of the transponder antenna on the outside
• 3 transponder chips (blue chips are unprogrammed)
• 2 progamming cards transponder
(programming card = green; delete-all card = red)
STV-HT TRANSPONDERSET T02 EAV BL 2410265
Wireless remote control set
• 1 wireless receiver (to be inserted in the ush-type box)
- mounting of the remote control receiver on the inside
• 3 remote controls (programmed, color: dark grey/grey)
• programming instruction + connection diagram
STV-HT WIRELESS REMOTE CONTROL F02 ANTHR.
SET 3 + 1
2410273
NOTICE!
You have to connect the following parts directly with the door opener when using/
connecting a door opener: varistor at AC/free-wheeling diode at DC.
Reason: Protection of the relay from wear.
