Installation, Operating and Maintenance
Instructions blueMatic EAV
24
Aug. Winkhaus GmbH & Co. KG · Berkeser Str. 6 · D-98617 Meiningen www.winkhaus.de
Subject to technical changes
NOTICE! Unless you are using a Winkhaus power supply unit, please keep in mind
the following information:
• exclusively for blueMatic EAV, 12 V DC (direct current), stabilized, min. 1,5 A
• For further external loads (e.g. intercom, LED lighting, video systems etc.), sepa-
rate or designed power supplies must be used.
7b

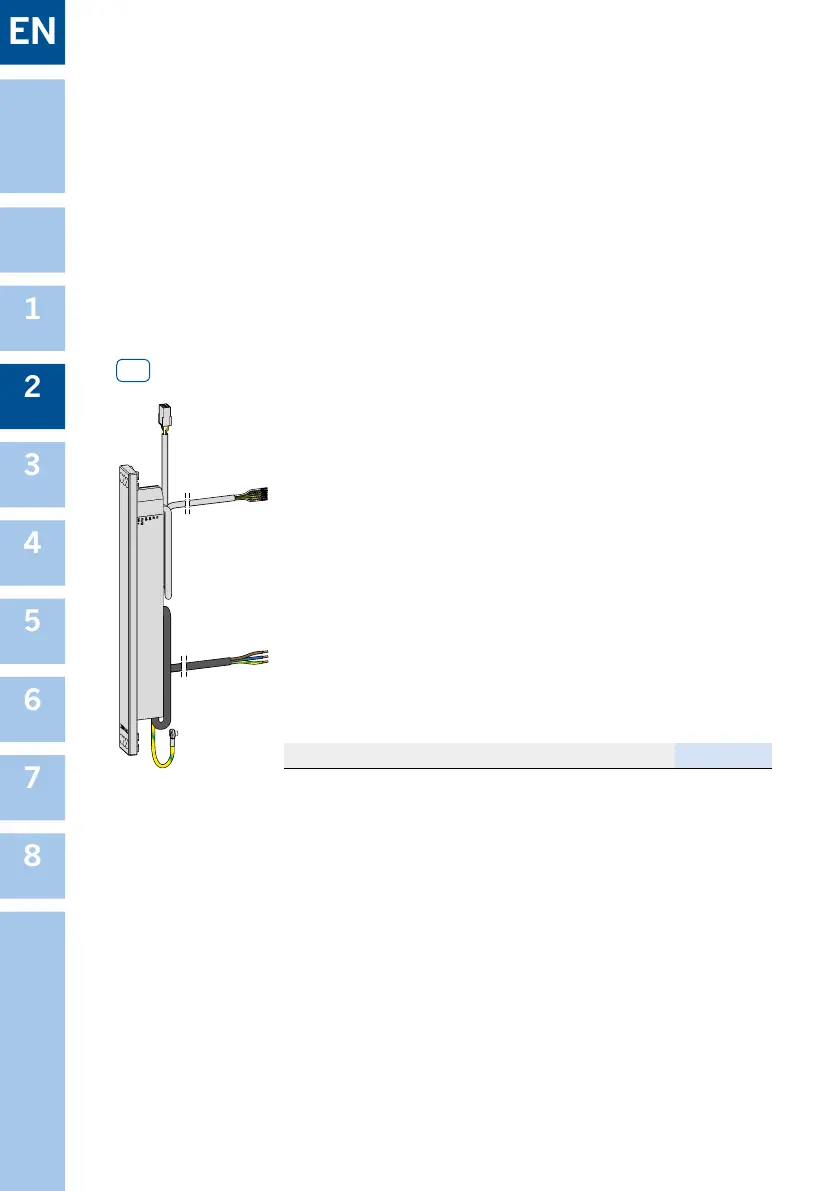

Frame power supply (optional)
The Winkhaus frame power supply is a switching power supply
(single-phase, primary pulsed installation current supply, high
pulse load capacity, short-circuit proof, open-circuit proof, high
eciency, thermal overload protection). The power supply is sui-
table for mounting in the frame, on the construction site only the
principal voltage (230 V) has to be made.
• 4 m cable for connection 230 V AC with cable end sleeves
• 0.4 m cable with eyelet (M4) for earthing
• 0.2 m cable with plug for connection with frame part STV-
KÜ-T1 RT KABEL 0,6M RNT
• 4 m cable (6-wire) for external signal (potential-free contact
- switching time min. 0.5 seconds) from external access con-
trol systems including voltage supply (output)
STV-POWER SUPPLY RAHM. 12 V DC 1,5 A (2A/2S) 5038587
CAUTION! Cable for external signal at frame power supply is current (12 V DC), do
not connect external voltage!
Insulated in condition as delivered; insulation is MANDATORY when shortened (e.g.
adaptation to the installation situation), if not necessary!
DANGER! Power supply must be properly grounded (secure the eyelet for earthing
securely to the metal prole).
Use cable grommet at 230 V cable (2 x included)!
No external voltage on output for external signals.
CAUTION! With the combination blueMatic EAV + access control, the power requi-
rement must not to be fraught more than 2 A! With the combination with frame pow-
er supply STV-NETZTEIL RAHM. 12 V DC the power supply should be charged max.
permanently with 1,5 A and max. 2 A will be charged for 2 s!
