Installation, Operating and Maintenance
Instructions blueMatic EAV
23

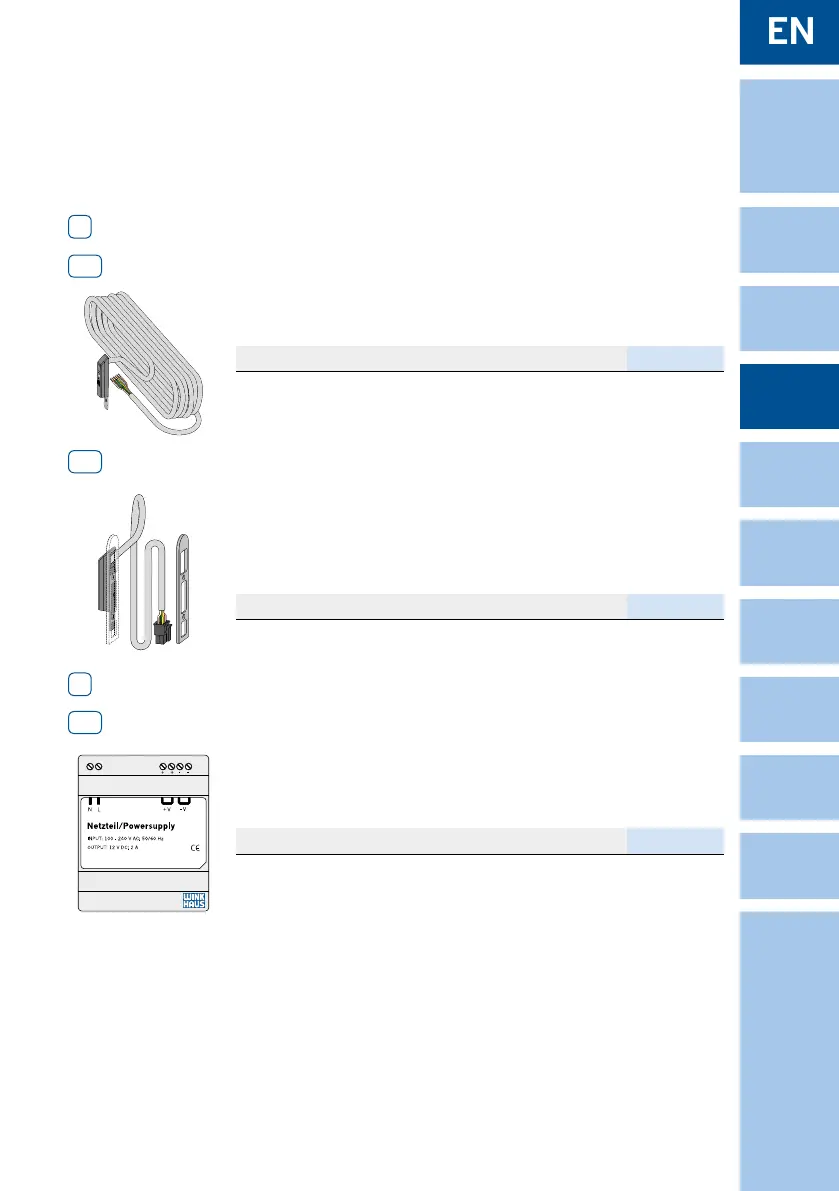

6
Frame part
6a
Frame part for external power supply
Frame part with 4 m cable and cable end sleeves (6 wires)
STV-KÜ-T1 RT KABEL 4M 5040503
6b
Frame part for frame power supply
Frame part with 0.6 m cable and plug for frame power supply
inclusive cover strip STV-KÜ-T1 RT R8, to cover the prole hole
on the frame side
STV-KÜ-T1 RT KABEL 0,6M RNT 5040504
7
Power supply
7a
External power supply
Power supply unit for blueMatic EAV with 100 - 240 V, 50/60 Hz,
12 V DC, 2 A, to be installed on a top hat mounting rail
STV-HT POWER SUPPLY 12 V DC/2A 2469777
NOTICE! The Winkhaus power supply 12 V is designed for the operation with Wink-
haus locks. In exceptional cases small consumers (eg. ngerprint in the door ele-
ment) can be used with this power supply - up to an additional current requirement
of max. 0.5 A and the voltage requirement must match the power supply (12 V DC).
NOTICE! Operation of a second EAV with the same power supply is not possible.
A separate power supply must be used for each lock.
