Installation, Operating and Maintenance
Instructions blueMatic EAV
27

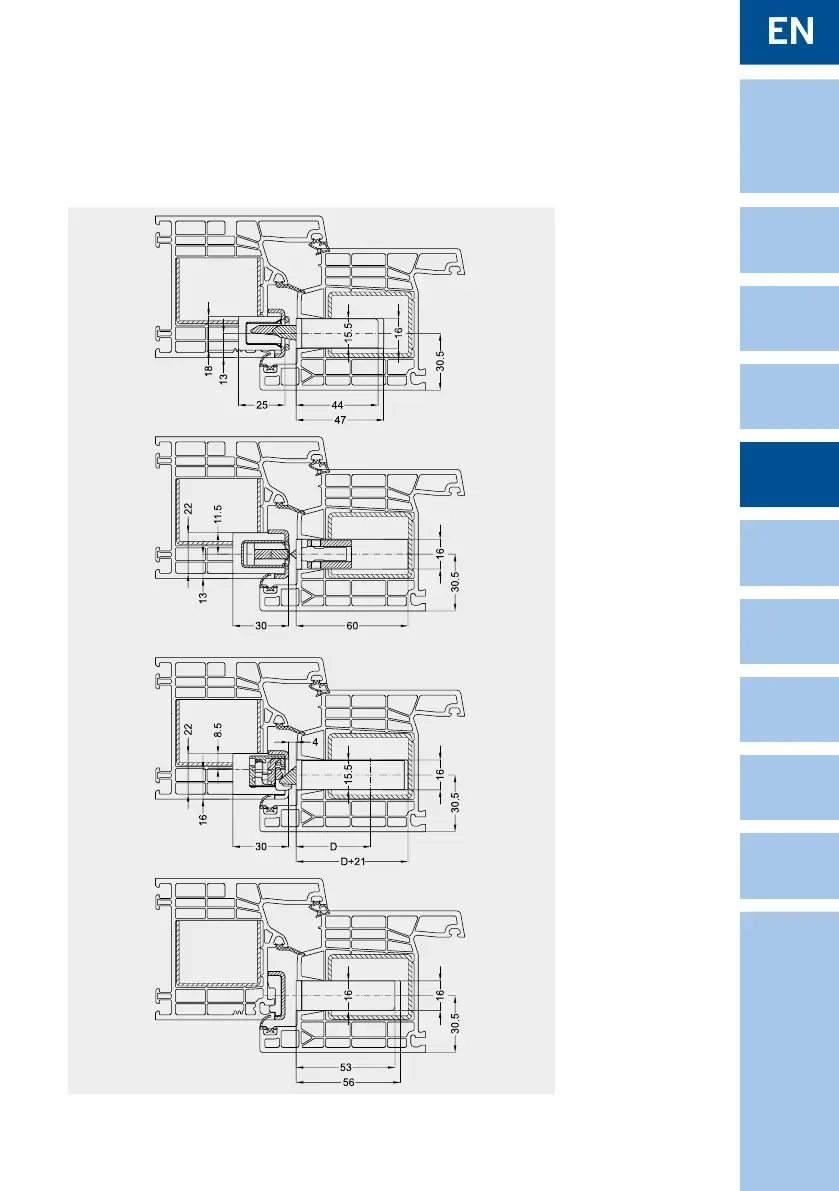

Figure 3.1-2: installation situations for blueMatic EAV
Situation
hook AV3
Situation latch/
daytime latch (TaFa)
Situation
motor housing
Situation
magnetic trigger AV3
