Installation, Operating and Maintenance
Instructions blueMatic EAV
29
Sash part
1
with cover plate
4
(Figure 1):
• Mill slotted hole max. 95 mm and approx. 50
mm deep
Sash part
1
without cover plate (Figure 3):
• Drill a hole 2 x Ø 13 mm resp. oblong hole
through the euro grove (approx. 245 mm ver-
tical under the frame part drill hole of Ø 8 mm,
depends on the prole/hinge rotation point)
and for screw
5
pre-drill (Ø 2,5 mm)
CAUTION! The drillings must be burr-free. The
spring must be kept under a slight pre-tension
even with the door being closed (approx. 10 mm).
• Attach necessary drillings (Ø 13 mm) in the
sash (e.g. in the glazing chamber)
• Pass the cable with the plug for the motor
through the door sash
• Insert the end of the spring into the sash part
1
into the drilling/routing into the door sash/
cover plate are.
• And/or alternatively to the cover plate
4
with
screw M3 x 12 mm
4.1
fasten the sash part
1
with tting screw Ø 3 x 20 mm in the tting
groove.
• Install the cable for example within the glazing
chamber towards the motor housing; install the
rest of the cable for example within the hollow
section.
CAUTION! Provide cable reserve of about 3 - 5 cm
for the spring tension behind the sash part
1
of
the cable transition.

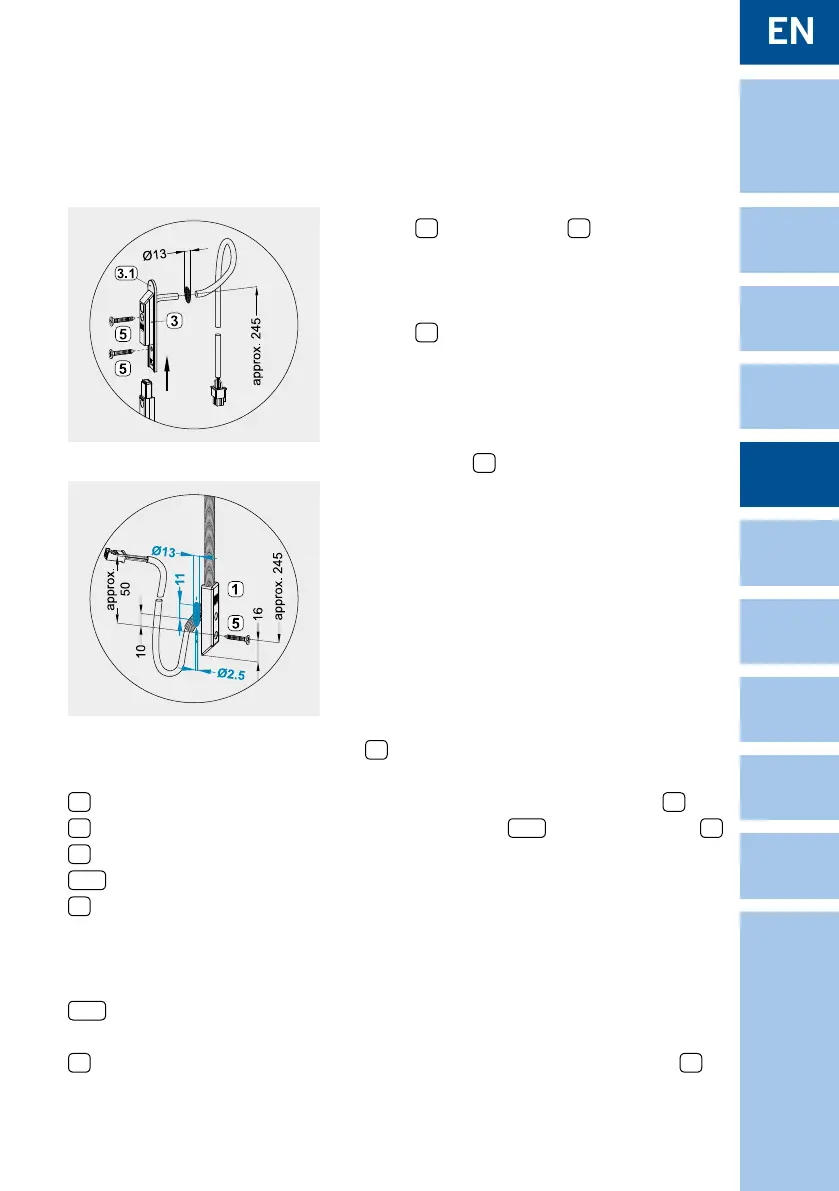

Figure 3.2-2: Detail frame part 2
Figure 3.2-3: Detail STV-KÜ-T1 FT
without cover plate
1
Sash part
2
Frame part 1
3
Frame part 2
3.1
Cover strip STV-KÜ-T1 RT R8
4
Cover plate
(F16 = L 126 mm R8;
F20 = L 130 mm R10;
F24 = L 134 mm square)
4.1
Screw M3 x 12 (includet in
delivery from cover plate)
5
Fitting screw (includet in
delivery from sash part)
