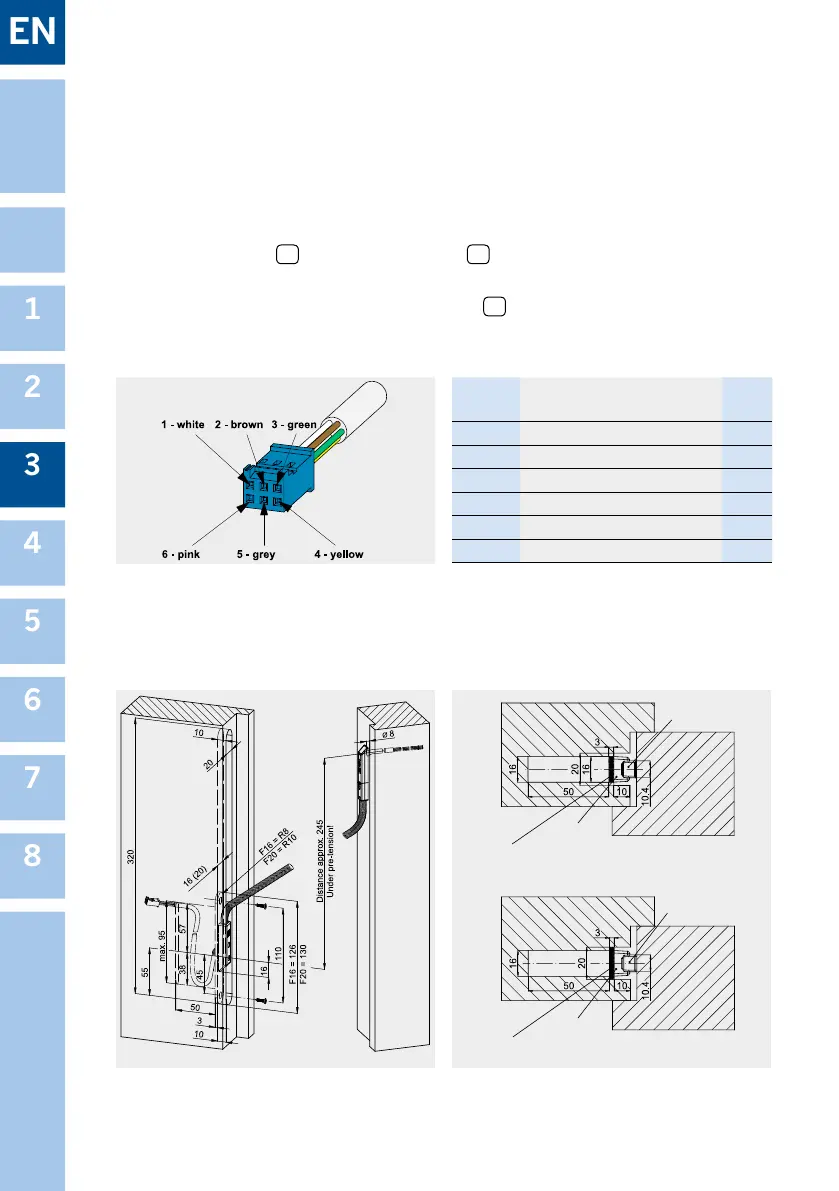

Figure 3.2-4: Routing dimensions for STV-KÜ-T1 FT and cover plate F16 or F20 (dimensions in mm)
Sash part
Cover plate F16
Frame part
Sash part
Cover plate F20
Frame part
• Complete the plug-in connection after putting the door on its hinges
• Fix the sash part
1
with the tting screw
5
Ø 3 x 20 mm (Figure 1)
CAUTION! Release the second retaining screw
5
(e.g. during the installation of the
door frame into the reveal) when unhinge the door sash! Insulate the wires not used!
Figure 3.2-3: Cable assignment when used with blueMatic EAV
Wire Cable assignment when used
with blueMatic EAV
Neces-
sary
1 - white
+ 12 V DC yes
2 - brown
0 V (ground) yes
3 - green
release signal yes
4 - yellow
optional, for swing door opener yes
5 - grey
optional, for swing door opener yes
6 - pink
not assigned no
Cover plate for STV-KÜ-T1 FT
