Installation, Operating and Maintenance
Instructions blueMatic EAV
45

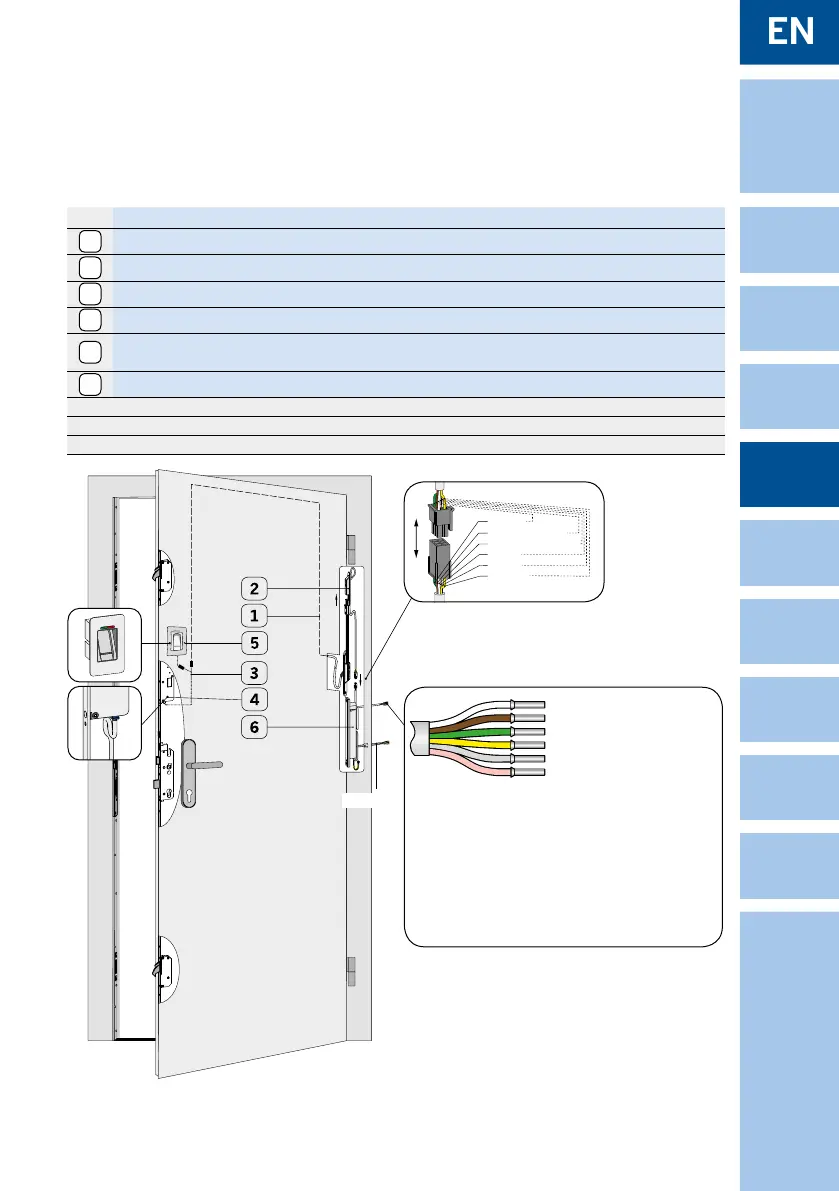

Figure 3.6.3-2: Wiring blueMatic EAV in connecting with sash side access control systems (e.g. Finger-
print IDENCOM BioKey INSIDE or ekey home SE micro) and frame power supply
230 V AC
Detail A: Connections signal input frame power
supply 12 V DC
Detail B: plug-in from frame part STV-KÜ-T1 RT
KABEL 0,6M RNT to frame power supply 12 V DC
Do not
connect external voltage!
yellow/grey = output signal swing door opener
(optional), only by motor housing
“swing door”
green/white = input for external potential-free
contact (e.g. unlocking via intercom/
open button)
NOTICE! max. 40 m extendable
}
signal swing door
opener
white + 12 V DC
brown 0 V
yellow
green
external opening signal
grey
pink (unscript)
green
white + 12 V DC
brown 0 V DC
pink
grey
yellow
No. Description
1
Sash part seperable cable transition KÜ-T1-ZK-FL FLÜGELTEIL-EAV *
2
Frame part STV-KÜ-T1 RT KABEL 0,6M RNT ***
3
Y-KABEL ZK FLÜGEL-EAV (length 0.5 m) *
4
Motor housing EAV **
5
Access control systems (e.g. Fingerprint IDENCOM BioKey INSIDE with Black Box or ekey home SE
micro with micro controller)
6
Frame power supply STV-NETZTEIL RAHM. 12 V DC 1,5 A
* at shipment Winkhaus STV-KÜ-T1 SET FT ZK-EAV FT 4M + KA 3,5M
** at shipment Winkhaus, unmounted, for retrotting mechanical locking system
*** Order frame part separately
