blueMatic EAV 504474413Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

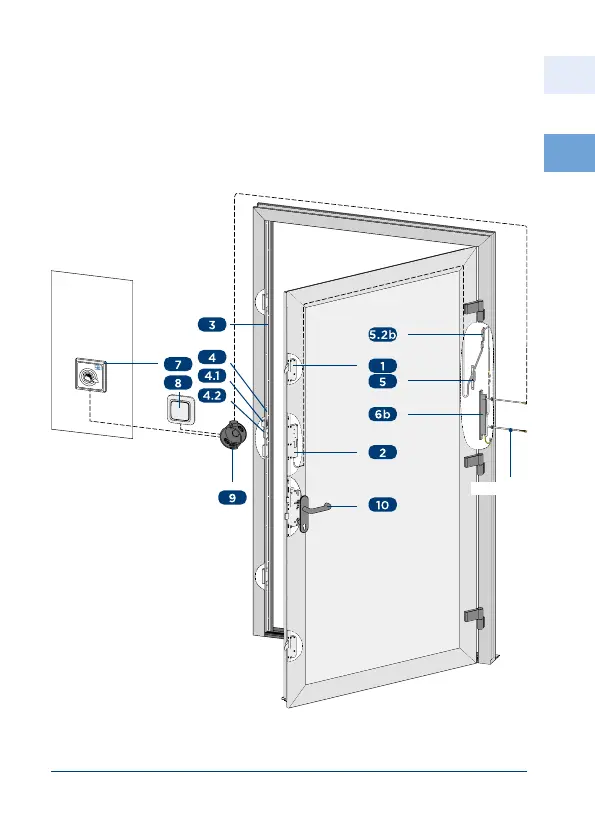

Figure 2-2: blueMatic EAV with accessories and frame power supply
T-NETZTEIL RAHM. 12 V DC 1,5 A
230 V AC
In the
external
zone around
the entry
door
