Notice: If the reader and button are accommodated in the flush-
type box at the same time, this must have a depth of 65 mm!
DANGER! For safety reasons, do not install it in a flush-type box
with a 230 V switch or socket outlet!
504474444
3
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
blueMatic EAV Installation, Operating and
Maintenance Instructions

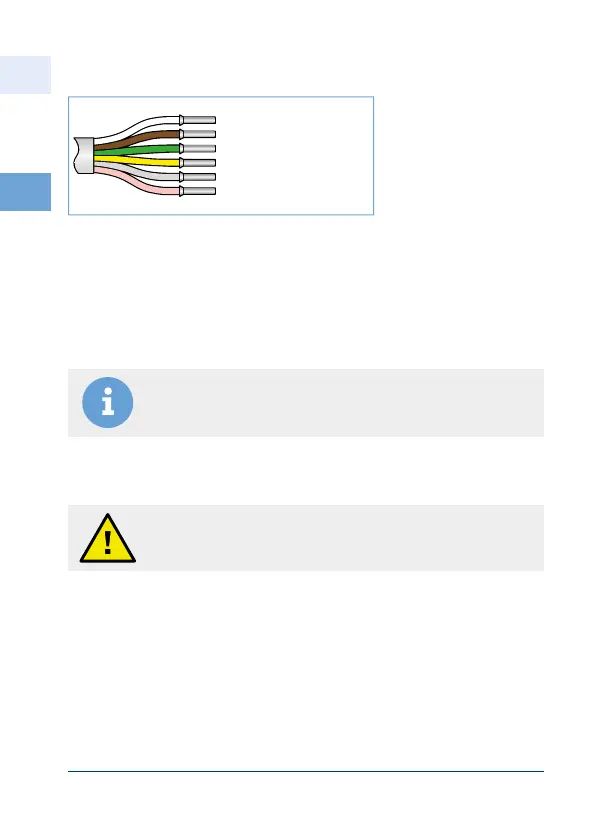

Figure 3.3.1-2: Detail of
terminal assignment
Prerequisites for installation
• The transponder signal is processed in the reader/control unit.
• This unit has to be installed in a standard flush-type box inside the building
(close to the door).
3.4 Access control system transponder set
• If no button is used next to the door, a flush-type box with a blind cover can
be provided for the reader.
• The transponder antenna is located in a housing for exposed installations
and is to be installed in a weatherproof zone outside the entrance door.
• Do not install the antenna directly on metal as its range could be decreased
drastically.
• Do not install any other antenna within a radius of 1 m!
white + 12 V DC
brown 0 V
green external opening signal
yellow
grey
pink (unscript)
}
signal swing
door opener
