Winkhaus blueMatic EAV - Frame Power Supply (Optional)

Caution! Cable for external signal at frame power supply is
current (12 V DC), do not connect external voltage!
Insulated in condition as delivered; insulation is MANDATORY
when shortened (e.g. adaptation to the installation situation), if
not necessary!
DANGER! Power supply must be properly grounded (secure the
eyelet for earthing securely to the metal profile).
Use cable grommet at 230 V cable (2 x included)!
No external voltage on output for external signals.
blueMatic EAV 504474433Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

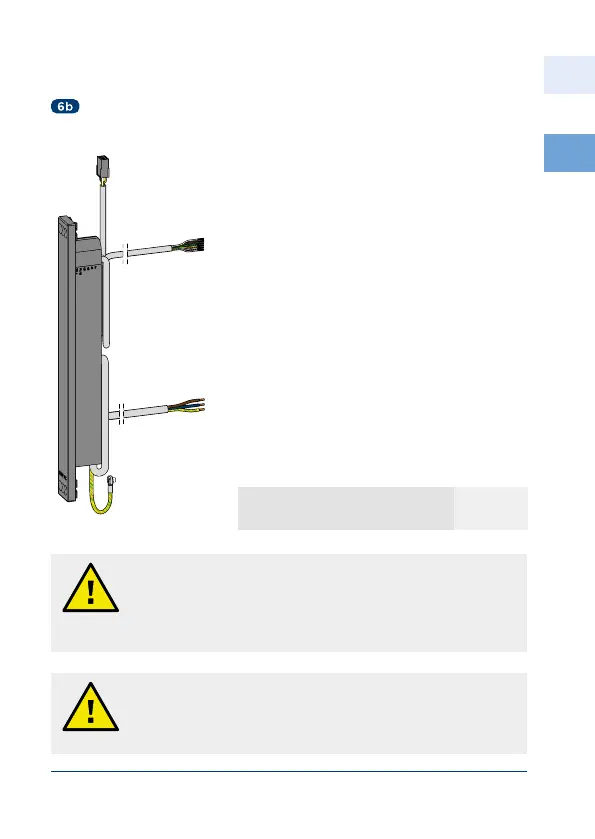

Frame power supply (optional)
The Winkhaus frame power supply is a switching
power supply (single-phase, primary pulsed
installation current supply, high pulse load
capacity, short-circuit proof, open-circuit proof,
high eciency, thermal overload protection).
The power supply is suitable for mounting in the
frame, on the construction site only the principal
voltage (230 V) has to be made.
• 4 m cable for connection 230 V AC with cable
end sleeves
• 0.4 m cable with eyelet (M4) for earthing the
door profile
• 0.2 m cable with plug for connection with
cable transition frame part T-KÜ-T1 RT
KABEL 0,6M RNT
• 4 m cable (6-wire) for external signal
(potential-free contact - switching time min.
0.5 seconds) from external access control
systems including voltage supply (output)
T-NETZTEILRAHM  V DC
 A ( A S)
5038587
