blueMatic EAV 504474412Installation, Operating and
Maintenance Instructions
1
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes
2 Product description
The blueMatic EAV (Automatic locking system with motorised opening function)
is a state-of-the-art locking unit for securing and locking entry doors in a
contact-free manner. The hooks can be retracted electrically so as to open the
door.

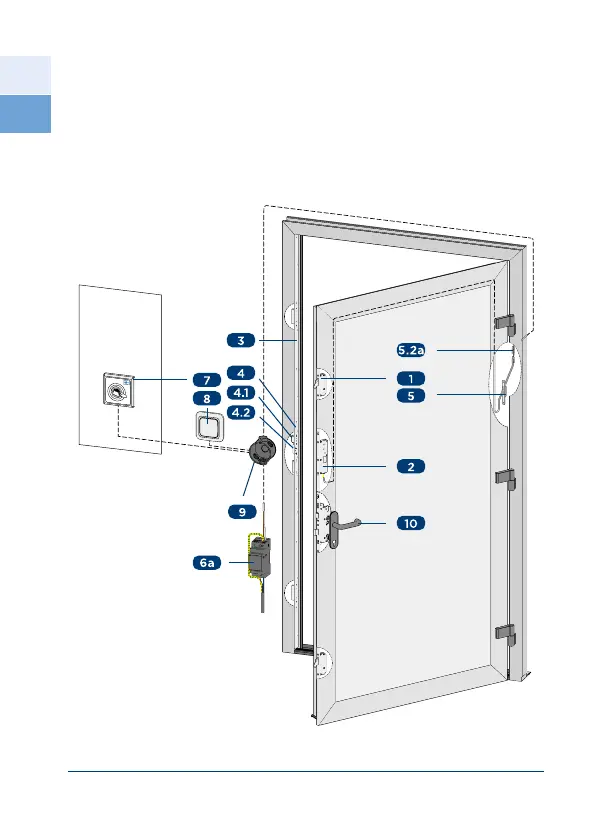

Figure 2-1: blueMatic EAV with accessories and external power supply
In the
external
zone around
the entry
door
230 V AC
