Notice: The Winkhaus power supply 12 V is designed for the
operation with Winkhaus locks. In exceptional cases small
consumers (eg. fingerprint in the door element) can be used
with this power supply - up to an additional current requirement
of max. 0.5 A and the voltage requirement must match the
power supply (12 V DC).
Notice: Operation of a second EAV with the same power supply
is not possible. A separate power supply must be used for each
lock.
Unless you are using a Winkhaus power supply unit, please keep
in mind the following information:
• exclusively for blueMatic EAV, 12 V DC (direct current),
stabilized
• min. 1,5 A continuous current
• for further external loads (e.g. intercom, LED lighting, video
systems etc.), separate or designed power supplies must be
used.
Notice: If no separable cable transition (e.g. T-HT KÜ M1188) or
no Winkhaus cable transition is used, then the cable "T-HT
ANSCHLUSSKABEL 6 M FÜR MOTOR" for motor housing
(2522881) must be used.
blueMatic EAV 504474432Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

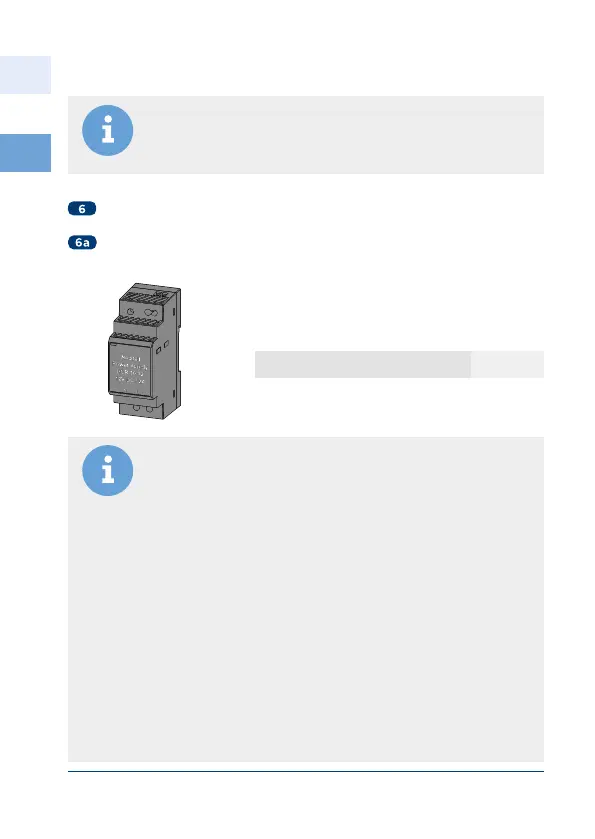

Power supply
External power supply
Power supply unit for blueMatic EAV 100 - 240 V,
50/60 Hz, 12 V DC/2 A, mounting on DIN rail,
includes connection diagram
T-HT NETZTEIL V DC A 2469777
