Caution! The wiring / cable transitions must be installed in the
safe area (e.g. installed concealed in the airgap) and protected
against manipulation.
blueMatic EAV 504474429Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

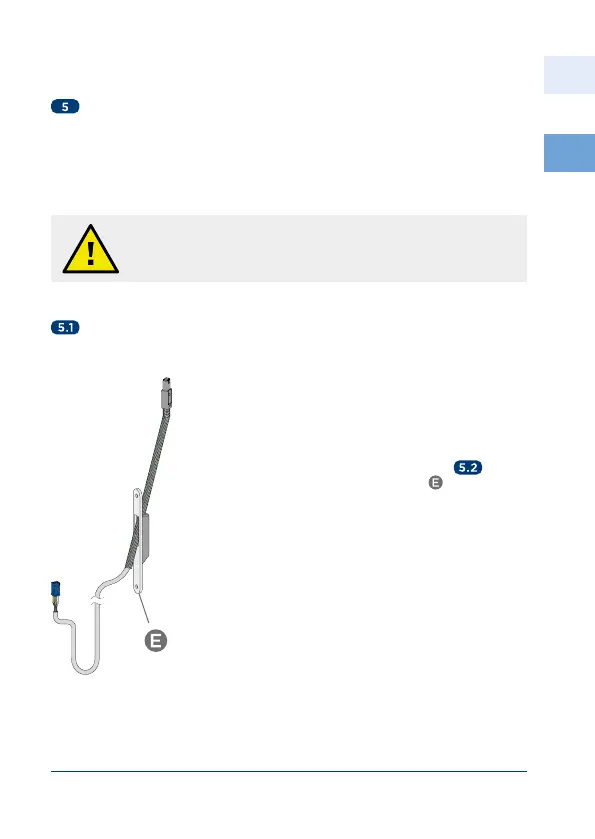

To transmit the current from the frame to the sash, so-called cable transitions
(details in the following text) or so-called tappet contacts (see separate instal-
lation, operating and maintenance instructions for tappet contact) can be used.
Cable transition
Plug-in and concealed cable transition
• Inserted by plug-in function, with retaining
screws (3 x 20 mm)
• Sash part with spring sleeve in different
versions (see table)
• Order frame part separately (see
)
• Order cover plate separately
• Installed concealed in the airgap
• Electric interface between sash and frame
with 6 wires (max. 48 V DC/2 A each wire)
• color silver/grey
• No routing for > 11 mm airgap needed,
suitable for PVCu and aluminium entrance
doors (depends on the system), with
appropriate routing it is suitable for timber
doors
Cable transition sash part T-KÜ-T1 FT ...
Recommendation: It is recommended that the cover plate (depends on the
faceplate and the material type of timber, PVCu/plastic or aluminum) conceals
the routing for the required cable reserves to prevent possible cable damage.
