3 Installation
For installing the blueMatic EAV it is required to rout out for standard three-
point locking system and additionally the motor housing, as shown in the
following diagrams.
3.1 Routing details

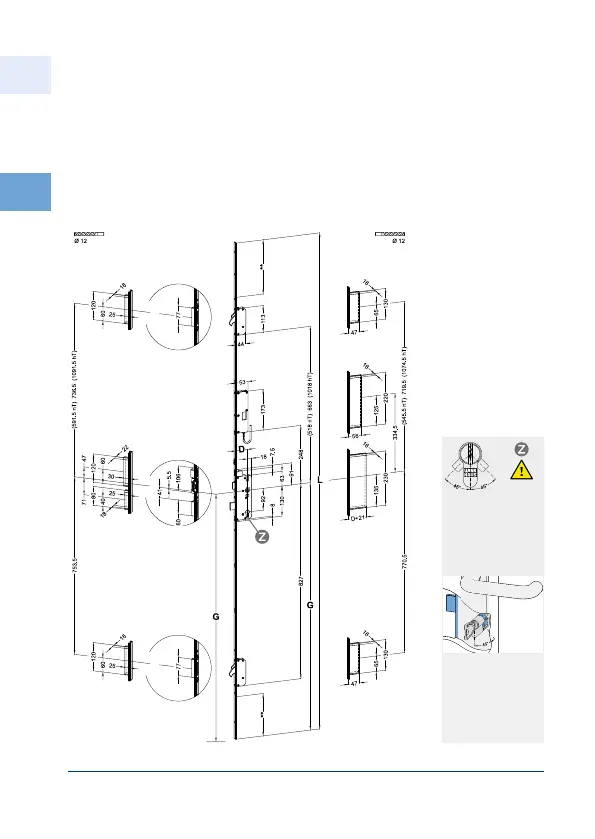

Figure 3.1-1: Dimensions for blueMatic EAV
D = Backset
G = Handle position
L = Length
** = croppable
nT = low doors
hT = high doors
Caution!
Requirement for profile
cylinder:
Cylinder with not adjus-
table cam have to have
cam position max 
leftright hand in key
removal position
Requirement for
profile cylinder with
adjustable cam:
Cylinder have to have
cam position max. 45°
or 4-o‘clock-position to
the hinge side in key
removal position.
