blueMatic EAV Installation, Operating and
Maintenance Instructions

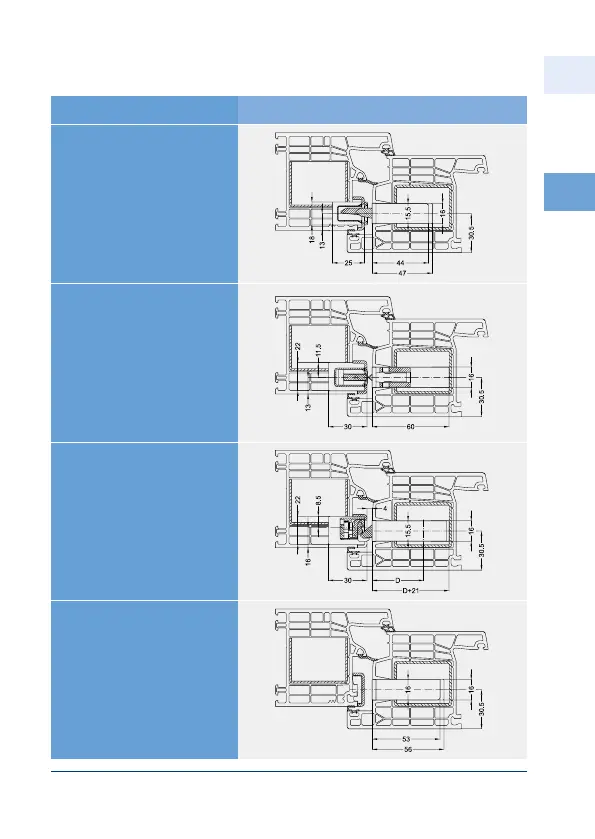

Description Installation situation
Situation
hook
Situation
magnetic trigger
Situation latch
with daytime latch TaFa
Situation
motor housing
