Notice: Please observe the following instructions when using a
swing door opener:
• Ensure that the motor can open the closing leaf at any time.
• After unlocking, the control unit sends a signal to the swing
door opener which must them open out immediately.
• If the automatic door drive is triggered at another point of
time, malfunctions can be caused.
• If the main dead bolt is unlocked manually, the door may not
be actuated electrically.
blueMatic EAV 504474425Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

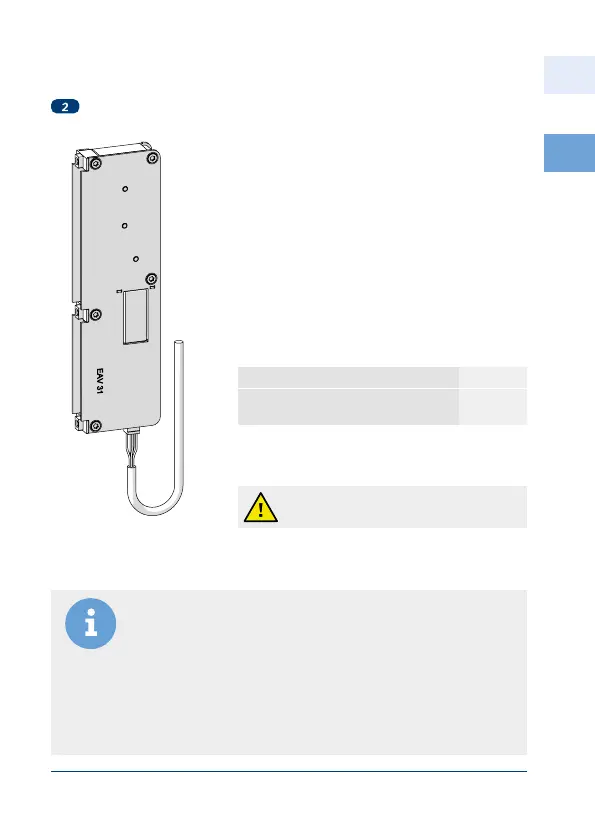

Motor housing
Motor housing for powered unlocking,
with integrated control unit, but without cable
• for transponder or wireless remote control
and potential-free contact
• optional for activation for control of swing
door opener with potential-free contact
• only available unmounted (for retrofitting
mechanical locks autoLock AV3 and
autoLock AV2)
Motor housings are suitable for locks autoLock
AV3 and also downward compatible for auto-
Lock AV2.
T-MOTORKASTEN EAV BL
)
5009320
T-MOTORKASTEN EAV
DREHTÜR BL
) )
5009324
)
to retrofit simply screw to the autoLock AV
(Automatic locking system)
)
incl. signal (potential-free contact) for
activation for control of swing door opener
Caution!
Pay attention to left-handed thread!
