Winkhaus blueMatic EAV - Access Control Systems

Caution! With the combination blueMatic EAV + access control,
the Winkhaus power supply T-HT NETZTEIL 12 V DC / 2 A
requirement must not be loaded with more than 2 A!
With the combination with frame power supply T-NETZTEIL
RAHM. 12 V DC the power supply should be charged max.
permanently with 1.5 A and max. 2 A will be charged for 2 s!
Notice: VdS acceptance:
Only with VdS-tested access control systems!
blueMatic EAV 504474434Installation, Operating and
Maintenance Instructions
2
EN
Aug. Winkhaus GmbH & Co. KG ∙ Berkeser Straße 6 ∙ 98617 Meiningen
T +49 369 3950 - 0 ∙ www.winkhaus.de ∙ Subject to technical changes

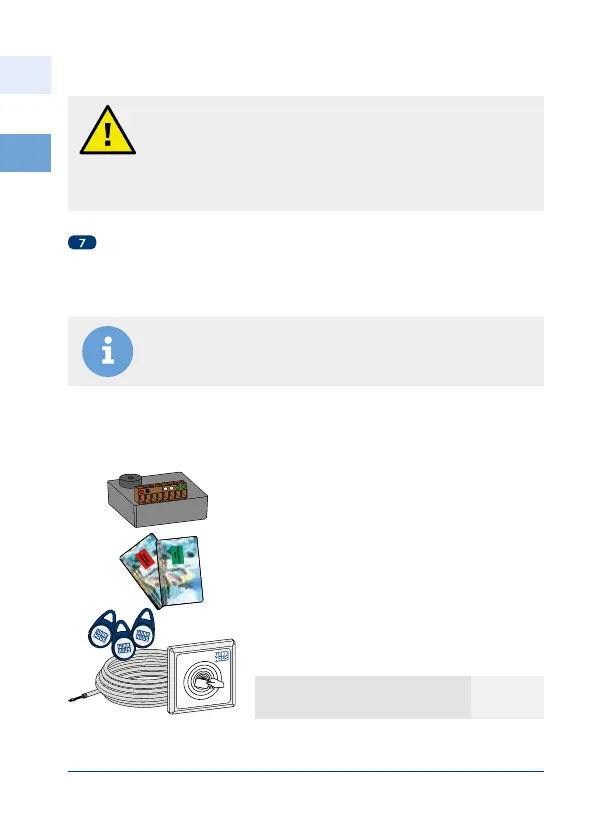

Access control systems
From the outside the door is opened via the access control system (transponder,
wireless remote control).
• 1 Reader/control unit (for flush-type box)
– mounting of the reader on the inside
• 1 antenna for exposed installation (90 x 90 x
13 mm,
color white), cable of 2.5 m fixed at the
antenna (not extend cable)
– mounting of the antenna on the outside
• 1 antenna sticker, weatherproof, resistant to
UV light
• 3 transponder chips (key fob, color blue, are
unprogrammed)
• 2 progamming cards transponder (pro-
gramming card = green; delete-all card = red)
Transponder set EAV
T-HT TRANSPONDERSET T
EAV BL
2410265
