blueMatic EAV Installation, Operating and
Maintenance Instructions

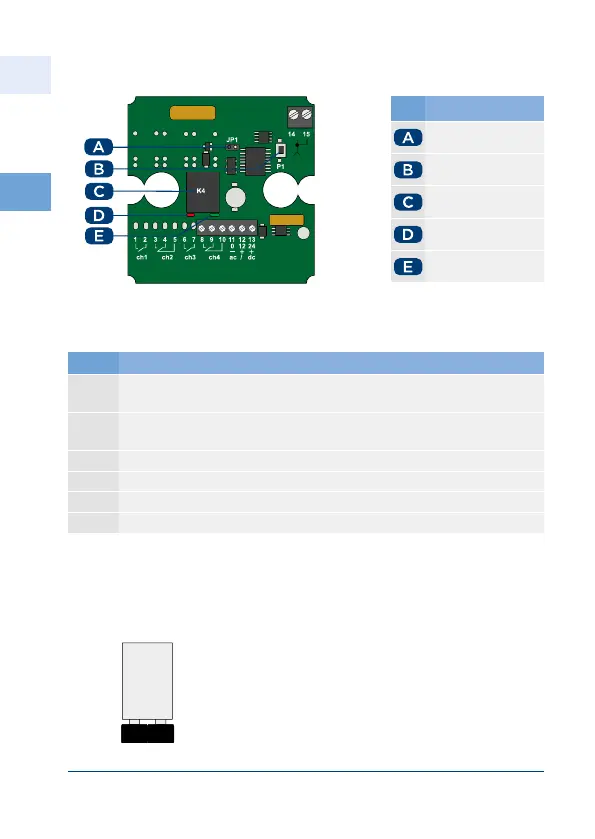

Figure 3.5.2-2: Installation of the circuit board of the receiver
JP1 = ON
K4 ON / OFF
No. Terminals circuit board of the receiver
  NO relay K - non-operated contact is open it closes by activating
per remote control
  NC relay K - non-operated contact is close it opens by activating
per remote control
   V ACDC
   V ACDC
 Antenna
 Screen
* You can set the K4 relay as ON/OFF or as an impulse via the JP1 jumper
(see figure 3.5.2-3). The setting depends on the control unit which is to be
triggered by the receiver.
• Relay remains active after being activated by
remote control.
• Deactivation by actuating the remote control
once more.
No. Name
JP jumper
P button
K relay
red LED
green LED
