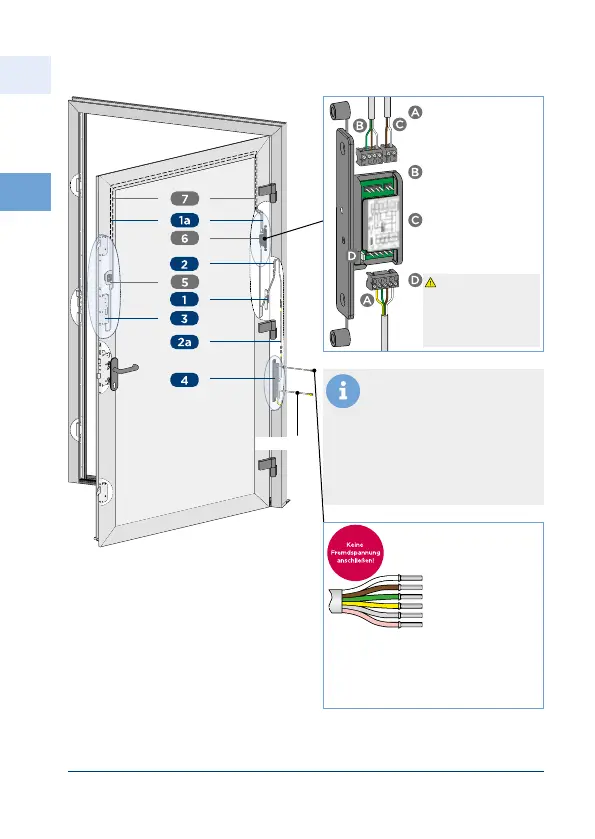

Figure 3.6.2-10: Installation blueMatic EAV with Fingerprint SOMMER
ENTRAsys+ FD and frame power supply (sash side)
230 V AC
greenyellow  input for external
potential-free contact
(eg unlocking via
intercomopen button)
Notice! max  m extendable
(min  mm)
}
free
white   V DC
brown  V
green
yellow
grey
pink
}
external opening
signal
Notice: In the combination of the
SOMMER ENTRAsys+ FD
fingerprint with Winkhaus
blueMatic EAV MANDATORY: do
not change the specified
assignment of the Winkhaus screw
terminal (white = + 12 V, brown =
0 V) / mount the Winkhaus screw
terminal as shown in the
illustration.
Connection from sash
part cable transition
to the radio receiver
ENTRAsys RX
(plug-in)
Connection from radio
receiver ENTRAsys
RX to the motor
housing EAV (plug-in)
Connection from radio
receiver ENTRAsys
RX to the fingerprint
ENTRAsys FD
(plug-in)
Caution!
Change jumpers from
Factory setting
 down on new
setting for blueMatic
EAV  top
