M101H Series User Guide 11

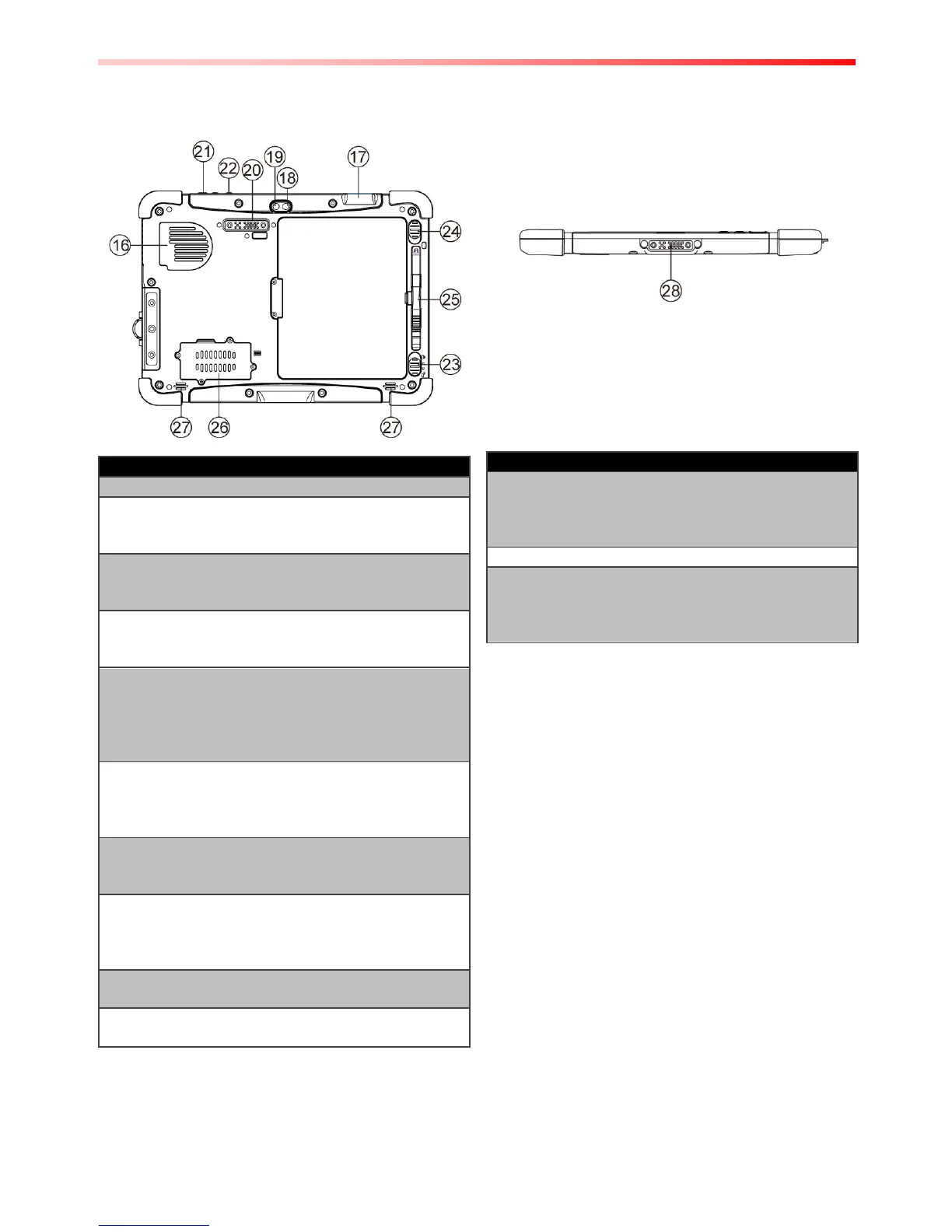

Rear:
No
Item
Description
16
Fan Intake
Intake for waterproof fan
17
Optional
Barcode
Barcode Scanner for
reading of 1D/2D
barcode.
18
Rear Camera
5MP Autofocus Camera.
Captures photos and
videos.
19
Camera Flash
LED camera flash to
provide flash lighting
when use with camera.
20
Expansion Port
Provides optional
connectivity to custom
modules for special
application (USB2.0 x 1 ,
RS232 x 1).
21
Fn2 Button
Programmable function
key configured by
HotTab Utility. Default:
Camera
22
Volume Buttons
Volume Control.
(+) Raises volume,
(-) Lowers volume.
23
Battery Lock
Latch
Latch to lock the battery
in place once battery is
inserted. Not spring-
loaded.
24
Battery Release
Slider
Spring-loaded slider that
latches the battery in.
25
Touch Pen Slot
Pen holder slot to store
touch pen
Bottom:
No
Item
Description
26
3G / LTE
Module / SIM
card slot
Service window to insert
Micro SIM card. Also
provide access to 3G /
LTE Module.
27
Speakers
Emits sounds.
28
Docking
Connector
Port to docking solutions
such as vehicle docking
to provide power and
external antenna
