Winmate M101H - Description of Parts

10 M101H Series User Guide

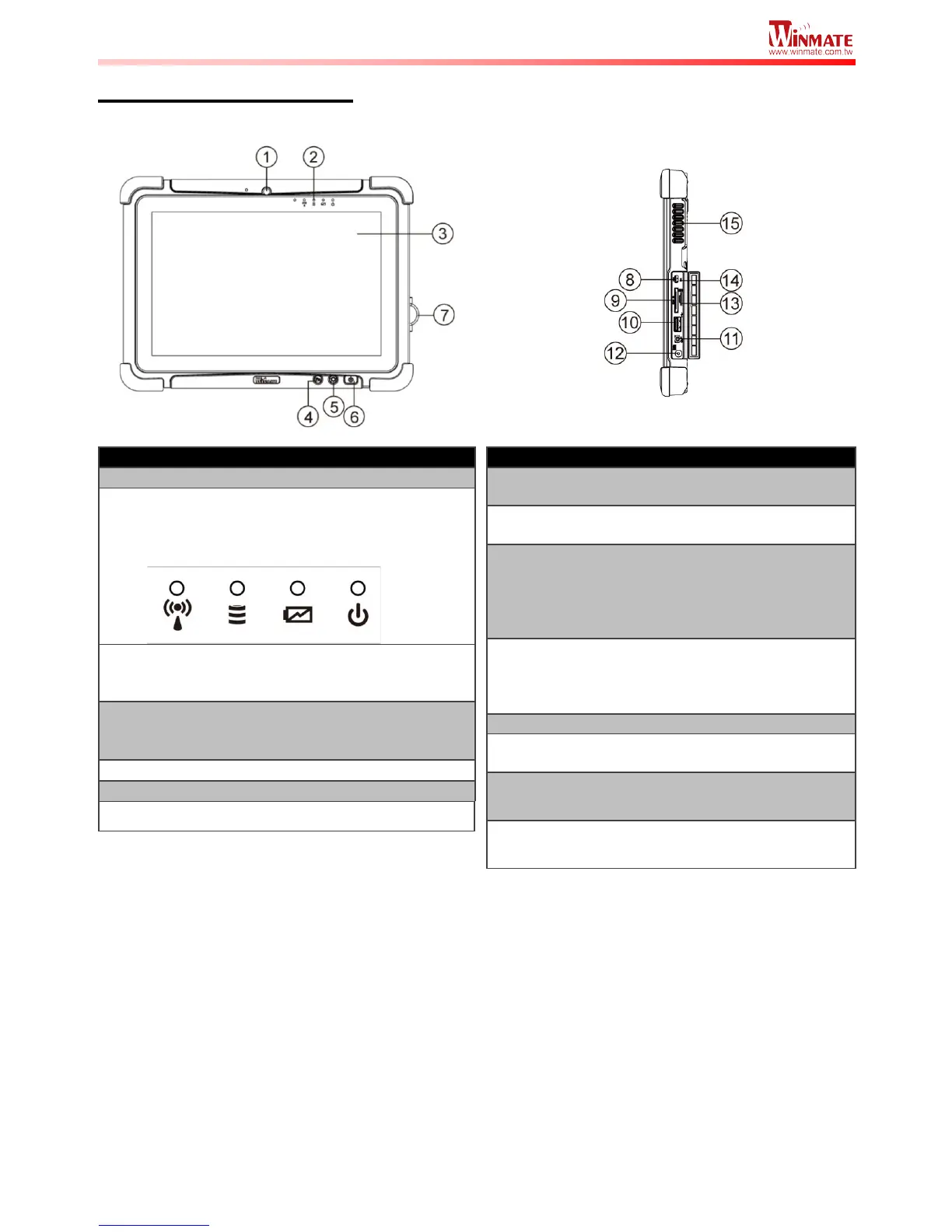

Description Of Parts
Front:
Right:
No
Item
Description
1
Front Camera
2 Megapixel Webcam
2
LED Indicators:
Show the current status of
the Tablet Computer
Front LED Indicators Detail:
3
Touch Screen
Display and act as one of
the inputs for the Tablet
Computer
4
Fn1 Button
Programmable function
key configured by Hottab
Utility
5
Menu Button
Hottab Quick Access
6
Power Button
Power on/off tablet
7
I/O Cover Protect I/O ports
No
Item
Description
8
Micro HDMI
HDMI output to external
display
9
LAN/RS232
Adapter port for
LAN/RS232 connector
10
USB 3.0
High speed USB port
connects to USB devices,
such as USB flash drive,
mouse, keyboard, printer,
etc.
11
Mic In/Line Out
Headset or headphone
can be connected (Mic is
only supported with
3.5mm 4-pin headset)
12
Power Jack
DC-IN power input jack
13
MicroSD Card
Reader
Memory card reader port
for MicroSD Card
14
Reset Button
Hardware reset button
15
Fan Exhaust
Exhaust for waterproof
fan
