Black Protective Covering Sheet
The face of the CMC is covered by a black Sintra protective sheet. This is used to protect your CMC. Do not remove the
Sintra. You will add one disposable slip sheet of matboard between the Sintra and the mat you are cutting, to prevent damage
to the CMC.
Fig A. Fig B.

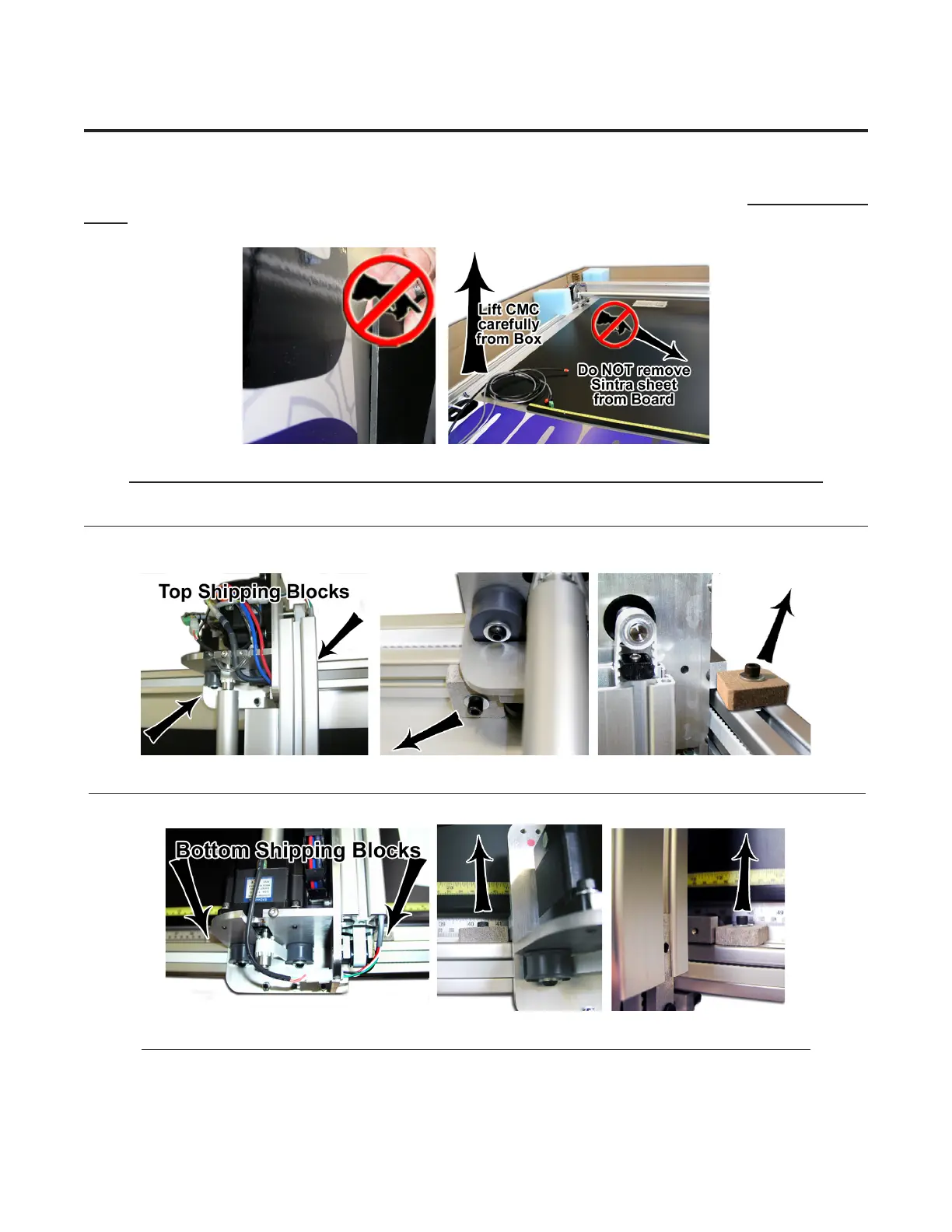

Fig A: Close up of the corner of the black Sintra. Fig B: Do not remove the black Sintra protective covering.
Unlocking the Shipping Blocks
1. Locate the four Shipping Blocks holding the Gantry in place. There are two on the upper Gantry (Fig A). One is to the left
of the Gantry on the underside of the top rail (Fig B) the other is to the right of the Gantry on top of the Rail (Fig C).
Fig A. Fig B. Fig C.
Fig A: Top shipping blocks. Fig B: Left top shipping block under top rail. Fig C: Right top shipping block above top rail.
The bottom shipping blocks are located on the top of the lower Rail on either side of the Gantry (Fig D-F).
Fig D. Fig E. Fig F.
Fig D: The lower shipping blocks. Fig E: Left lower shipping block. Fig F: Right lower shipping block.
