18
Wizard™ International, Inc., 4600 116th St. SW, PO Box 66, Mukilteo, WA 98275 888/855-3335 Fax: 425/551-4350 wizardint.com
7. Connect Blue Connector from the top of the Gantry to the Blue Connector on the back of the Board.
8. Turn on the Air.

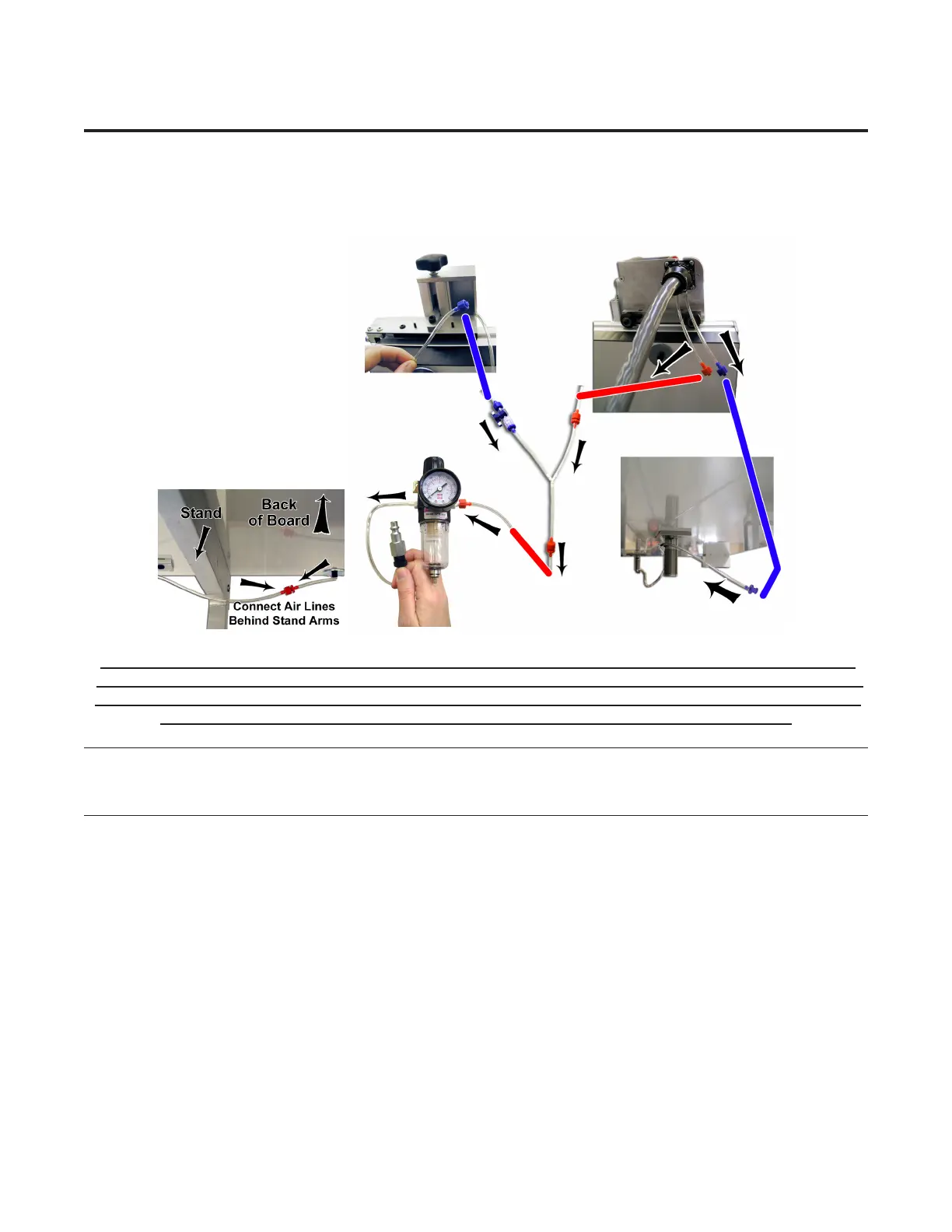

Fig A. Fig B.
Fig A: Connect bottom Air Lines to the interior of the Stand Arms. Fig B: Connect Blue Connector on the ST 500 to
Blue Air Connector of the “Y” Connector. Connect Red Connector of Gantry to top Red Connector of "Y" Connector.
Connect bottom Red Connector of "Y" Connector to right side of Air Regulator. Attach left side of Air Regulator to air
source. Connect Blue Connector from the Gantry to the Blue Connector on the back of the Board.
*WARNING: The Air Regulator comes factory-set. Do not make any
adjustments to it.*
