Wolf 2 Series - Clearances and Cabinet Dimensions

Electric Cooktop -2
Installation Information
2-3
To eliminate the risk of burns or fi re by
reaching over heated surface units, cabinet
storage space located above the surface
units should be avoided. If cabinet storage
is to be provided, the risk can be reduced
by installing a range hood that protects
horizontally a minimum of 5” (127 mm)
beyond the bottom of the cabinets.
L2
L1
Ground
1
2
3
4
5

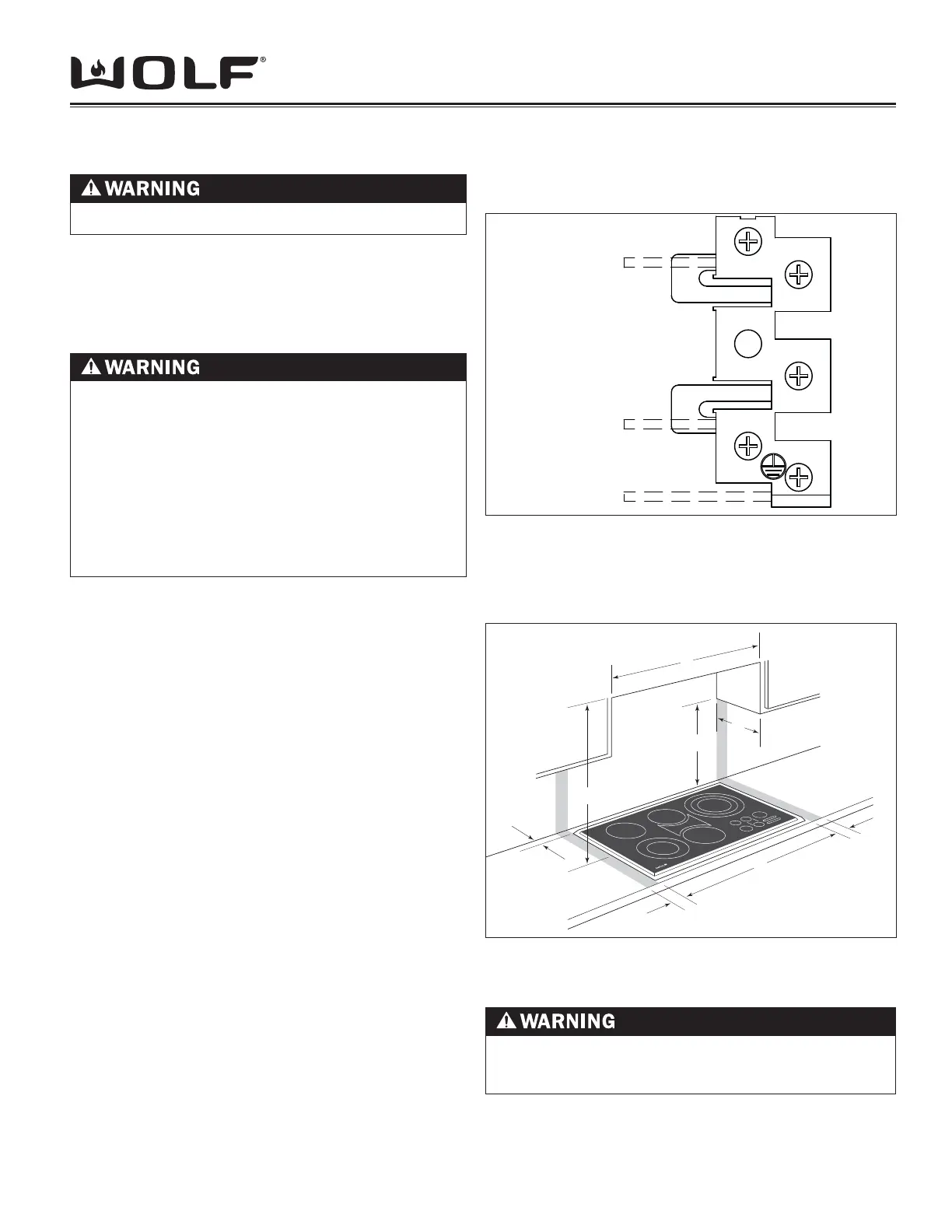

Figure 2-1 Terminal Connections
Figure 2-2 Minimum Clearances for Installation
Failure to locate the cooktop without the
proper clearances will result in a fi re hazard.
For electrical installation attach the conductors to the
residence wiring in accordance with provincial, municipal
and local codes.
Site Preparation
NOTE: Installation of the Wolf Electric cooktop
must meet the following location requirements. All
dimensions listed are minimum requirements for safe
operation.
Location In Counter top
See Figure 2-2 for the location of the following letter call
outs.
A. Minimum fl at counter top surface. Must be equal to or
greater than cooktop width.
B. Minimum 1” (25mm) wide clearance from the cooktop
side edge to any combustible surface up to 18”
(457mm) above the cooktop (noted by shaded area).
Overhead Cabinet Dimensions
C. Minimum spacing between overhead side cabinets
must be greater than or equal to the nominal width of
the cooktop unit(s).
D. Minimum 18” (457mm) vertical distance from the
counter top to the bottom of side cabinets within
minimum side clearance.
E. Minimum vertical distance between the counter top
and combustible materials above the cooktop must be
30” (762mm).
F. 1” (25mm) from rear wall.
G. Maximum 13” (330mm) depth of overhead and side
cabinets directly above and within side clearance (See
letter B).
C
G
D
A
B
B
E
F
These cooktops are intended for indoor use.
