Wolf BWL-1 S - Page 75

753064298_201507
Systemconguration34
BWL-1S(B)
● Split air/water heat pump
● BSH-800/1000
● TOB
● Extension, circuit with mixer, with MM
● Solar circuit extension with SM1
● DHW heating
● Alternatively, dual mode operation only is possible
Important information:

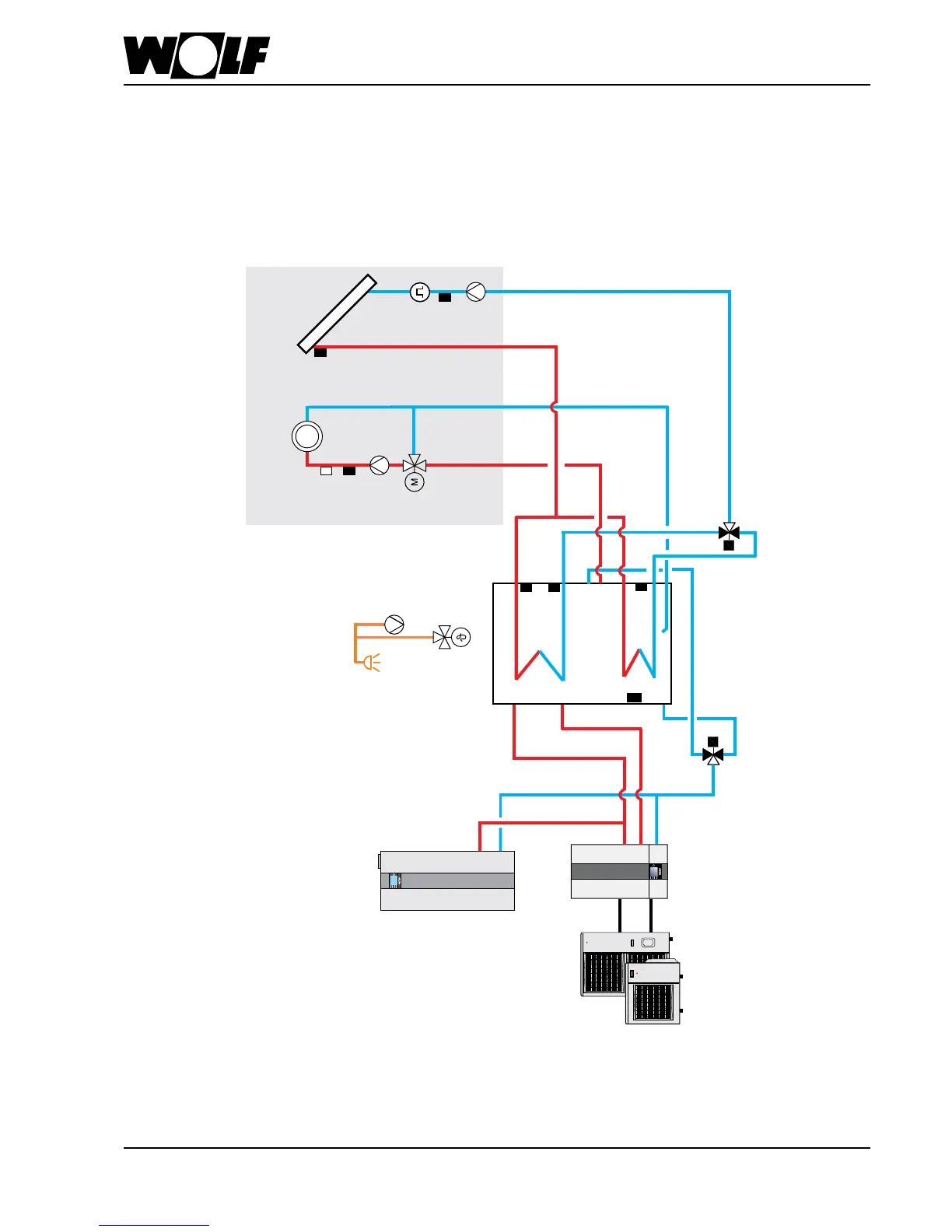

In this schematic diagram, shut-off valves, air vent valves and safety equipment are not fully represented.
These should be provided for each individual system, in line with the applicable standards and regulations.
Hydraulic and electrical data can be found in the Hydraulic System Solutions technical guide.
Circuit with mixer
MCP
MaxTh
FS
MM
A 3-way diverter valve for central heating/DHW and a feed/heating circuit pump are integrated into the indoor module
Indoor module
Outdoor module
SColS
SCP FT RTS
DHW
CTS
SCylS
Extension options
TOB
E3
BSH 800/1000
HTS
