Wood-mizer LT70 Series User Manual

Operation

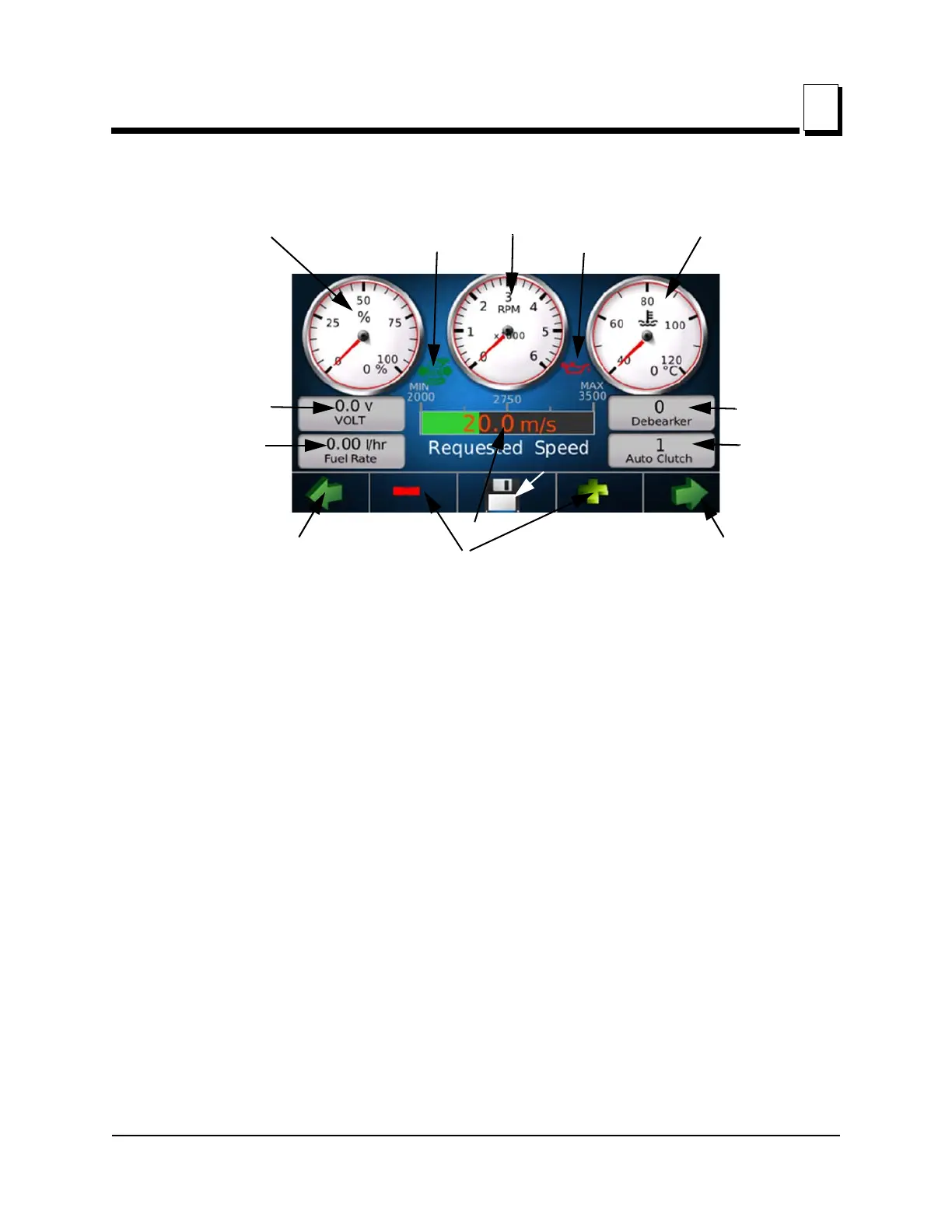

HMI Display
Operation G28doc072321 1-6
1
Screen #1
1. Current engine load.
2. Current engine RPM.
3. Current engine coolant temperature.
4. Debarker icon (ON when debarker is working).
5. Oil pressure icon (ON when the oil pressure is too low). The icon should be ON when the
engine ignition is ON and should go out immediately after the engine started.
6. Voltage of the sawmill electric circuit. When the engine is running it should indicate
14,2-14,6V. When the engine is OFF - above 12V. If the value is lower than 12V, the bat-
tery needs to be charged.
7. Temporary fuel consumption (in liters per hour).
8. Debarker status: 1-ON / 0-OFF.
9. Auto clutch status: 1 - Blade drive is engaged / 0 - Blade drive is disengaged.
10. Requested blade linear speed. Can be changed from 21m/s to 37m/s.
FIG. 1-4
2
3
1
4
5
6
7
8
9
10
11
13
13
12

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
