Wood-mizer LT70 Series User Manual

Operation
HMI Display
1
1-7 G28doc072321 Operation
11. Buttons used to increase and decrease the blade speed.
12. Press to save requested blade speed.
13. Press to switch between HMI screens.

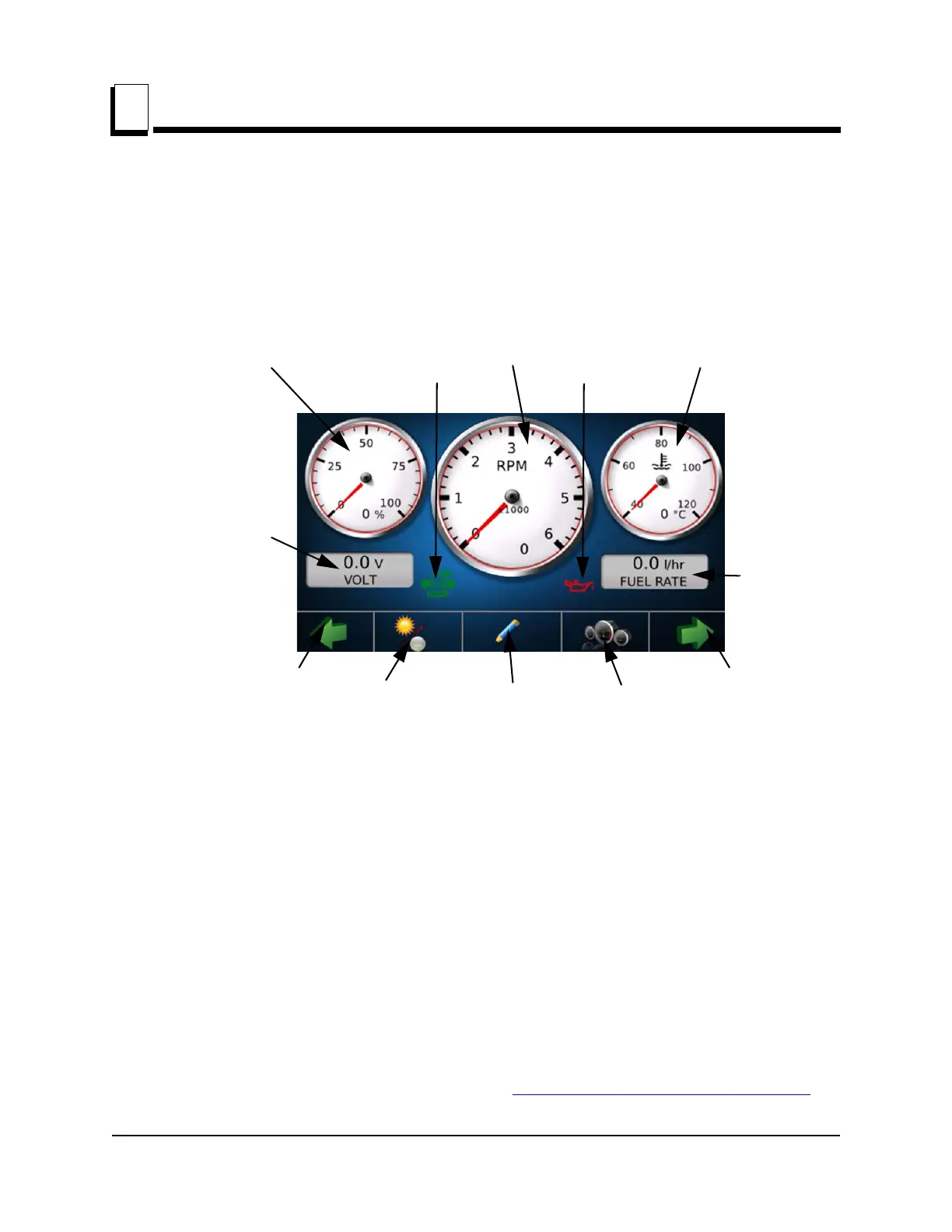

Screen #2
1. Current engine load.
2. Current engine RPM.
3. Current engine coolant temperature.
4. Debarker icon (ON when debarker is working).
5. Oil pressure icon (ON when the oil pressure is too low). The icon should be ON when the
engine ignition is ON and should go out immediately after the engine started.
6. Voltage of the sawmill electric circuit.
7. Temporary fuel consumption (in liters per hour).
8. Press to enter the “Setting language” screen. See Section Language settings screen.
FIG. 1-5
2
3
1
4
5
6
7
8
11
11
9
10

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
