Wood-mizer LT70 Series User Manual

Operation
HMI Display
Operation G28doc072321 1-8
1
9. Press to switch between the day and night modes.
10. Press to switch between “Engine hours” and “Fuel rate” screens.
11. Press to switch between HMI screens.

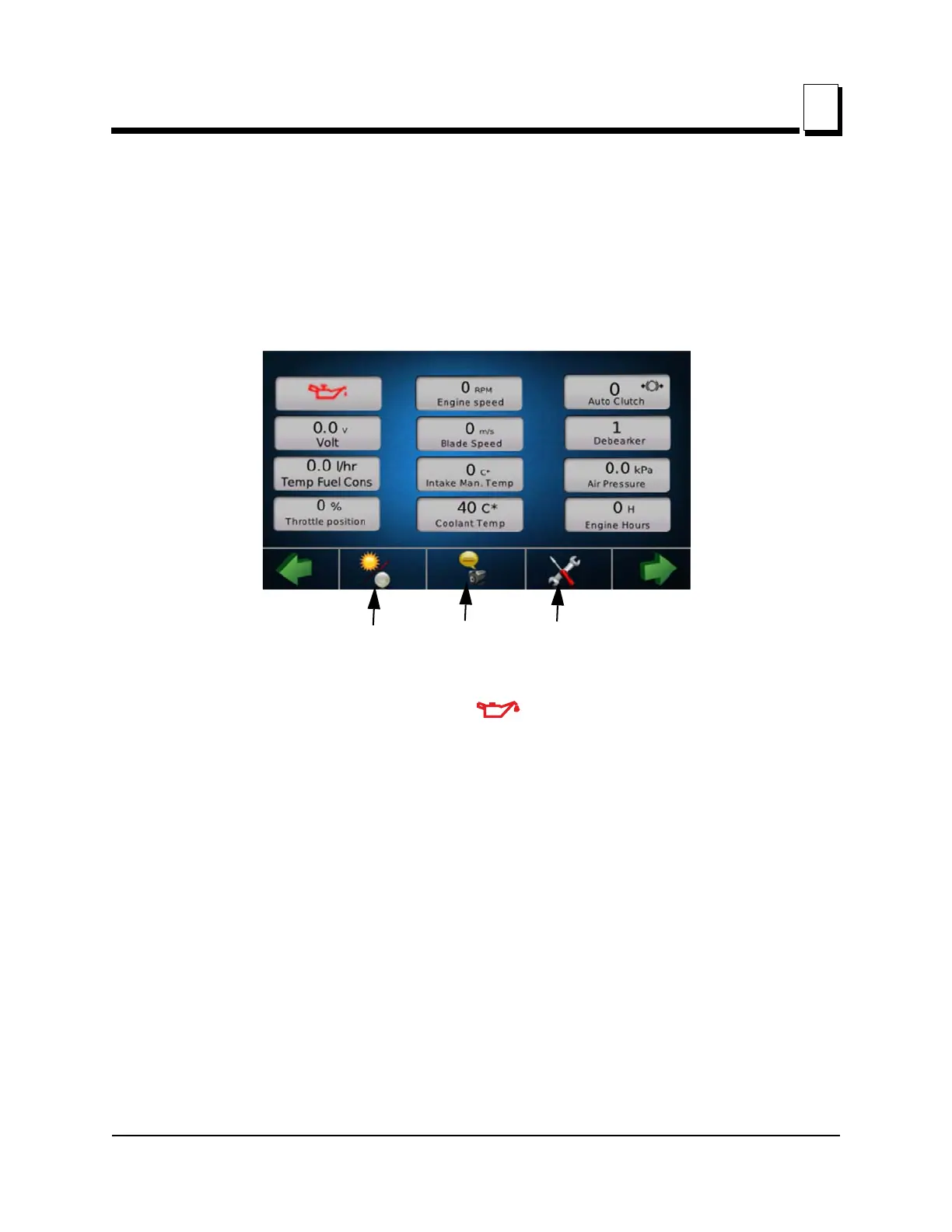

Screen #3
1. Oil pressure. If the oil pressure indicator is on, the oil pressure is too low.
2. Voltage of the sawmill electric circuit. When the engine is running it should indicate
14,2-14,6V. When the engine is OFF - above 12V. If the value is lower than 12V, the bat-
tery needs to be charged.
3. Temporary Fuel Consumption.
4. Throttle Position.
5. Actual Engine RPM.
6. Requested blade linear speed.
7. Intake Manifold Air Temperature.
8. Engine Coolant Temperature. The normal working temperature for the engine is 50-90
o
C.
9. Auto clutch status: 1 - Blade drive is engaged / 0 - Blade drive is disengaged.
FIG. 1-6
2
3
1
4
5
6
7
8
9
10
11
12
13
14
15

Wood-mizer LT70 Series Specifications

General

Hydraulic Log Handling	Optional
Computer Setworks	Optional
Blade Width	1.5 inches (3.8 cm)
Power Options	Electric or diesel
Head Controls	Manual
Cutting Method	Horizontal bandsaw
