Manual 26710V1 ProTechTPS Total Protection System
Woodward 27
Module Removal and Installation—Panel Mount
Package
Follow this procedure for module removal and installation:
Removal:
1. Disconnect power from the module to be removed.

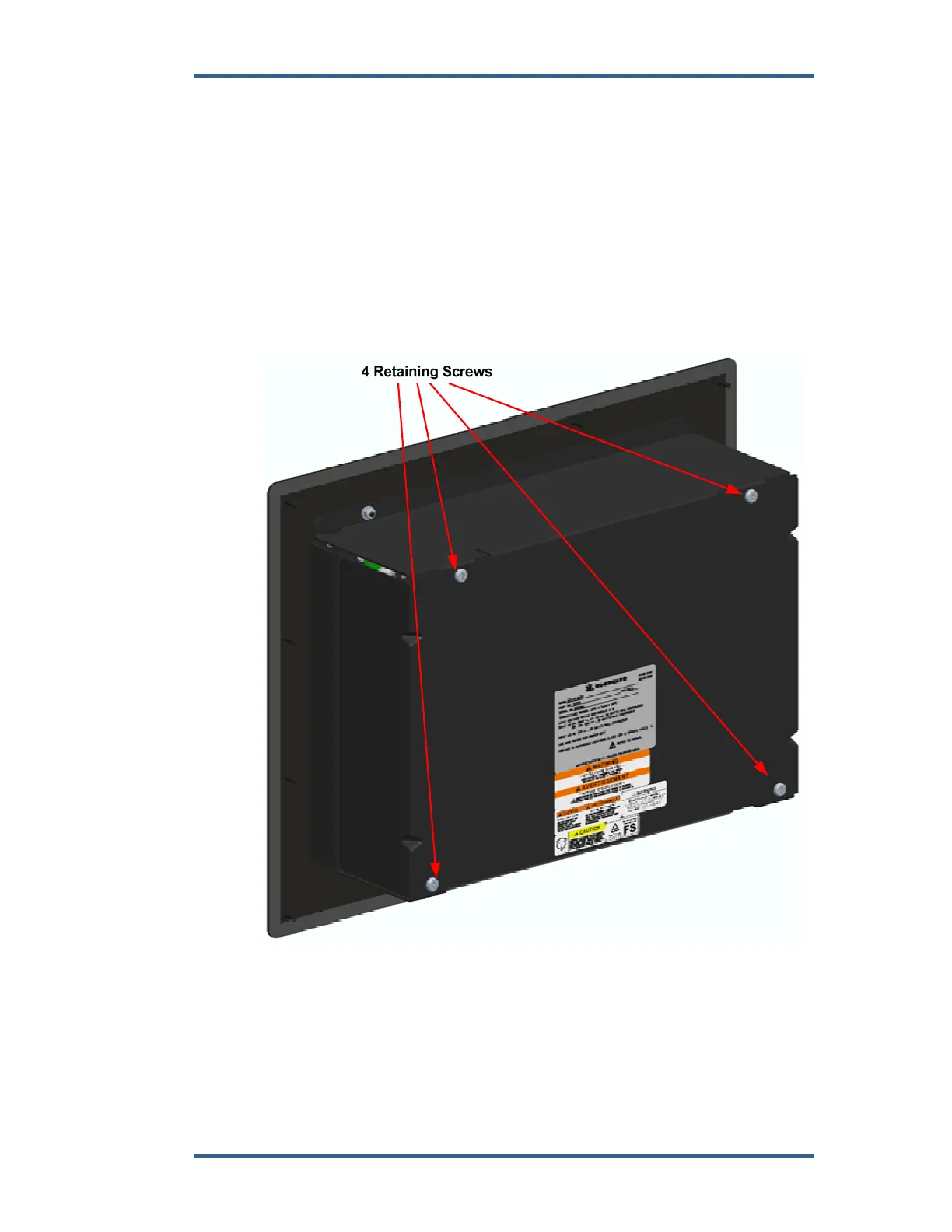

2. Remove 4 back panel retaining screws.
3. Remove back panel.
4. Verify power removed by observing power LED is OFF.
5. Remove terminal blocks from module terminals.
6. Loosen 4 module retaining screws.
7. Remove module by pulling the two handles simultaneously.
