Woodward ProTech TPS - Figure 2-11 B. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring (Internal Power); Figure 2-11 C. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring (External Power, Non-Preferred); Figure 2-11 D. Example Eddy Current Probe (Active Magnetic Pickup Unit)

Manual 26710V1 ProTechTPS Total Protection System
Woodward 39

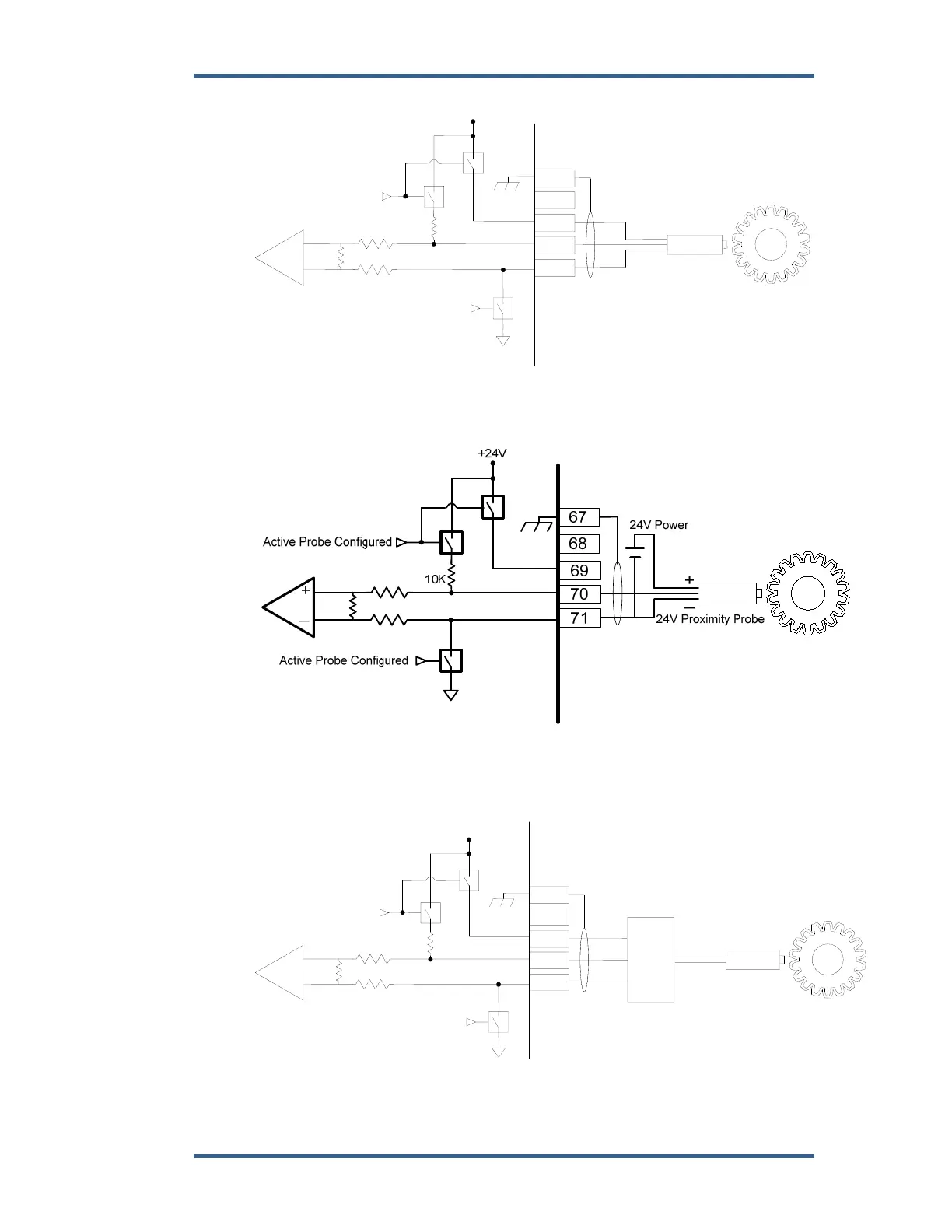

Figure 2-11b. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring
(Internal Power)
Figure 2-11c. Example Proximity Probe (Active Magnetic Pickup Unit) Wiring
(External Power, Non-preferred)
Figure 2-11d. Example Eddy Current Probe (Active Magnetic Pickup Unit) Wiring
67
68
69
70
71
+
_
24V Proximity Probe
+24V
A
ctive Probe Configured
A
ctive Probe Configured
10K
+
_
67
68
69
70
71
+
_
Eddy Current Probe
+24V
A
ctive Probe Configured
A
ctive Probe Configured
10K
VT
Com
Out
Bently Proximito
r
Senso
r
