Woodward ProTech TPS - Figure 2-10 B. Configurable I;O Wiring Routing & Stress Relief Diagram; Figure 2-10 C. Relay Output Field Wiring Routing & Stress Relief Diagram

Manual 26710V1 ProTechTPS Total Protection System
Woodward 37

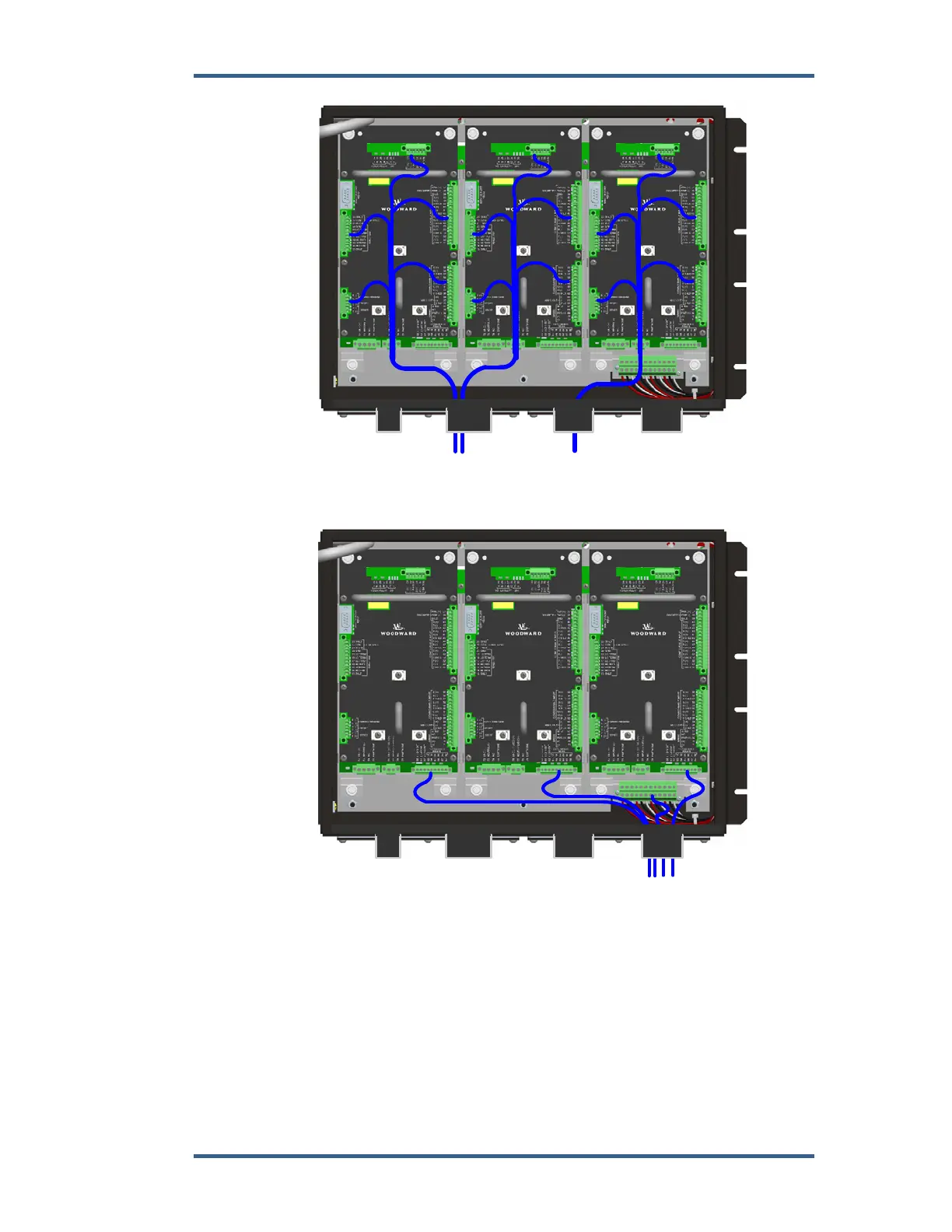

Figure 2-10b. Configurable I/O Wiring Routing & Stress Relief Diagram
Figure 2-10c. Relay Output Field Wiring Routing & Stress Relief Diagram
Speed Sensor Inputs
To sense speed, each ProTechTPS module (A, B, C) accepts a signal from a
speed sensor mounted on a gear connected to the turbine rotor or engine
crankshaft. Speed sensors may be any of the following:
 Passive magnetic pickup unit (MPU)
 Active proximity probe
 Eddy current probe
