Configurable Relay Outputs
Each module has 3 configurable Relay Outputs. Each relay output can be
configured to reflect the state of any Boolean value within the module. Each
output can be configured to be inverting or non-inverting. If configured as
non-inverting, the relay will energize when the configured input is true. The first
configurable relay is defaulted to the output of the Alarm Latch.

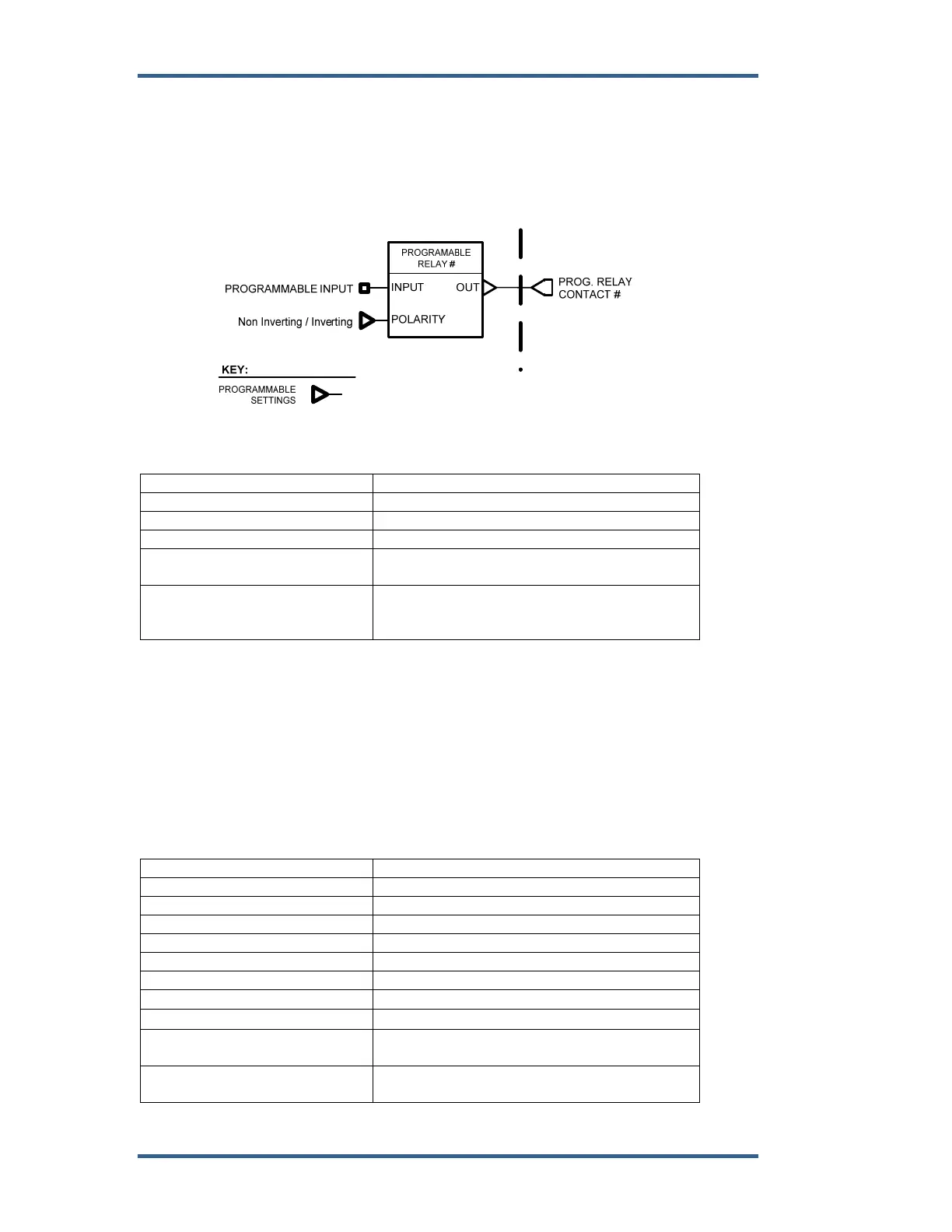

Figure 3-12. Programmable Relay Output Diagram
Programmable Relay Output Specifications
Number of Channels 3
Output Type SPST Solid-state, Normally Open
Current Rating 1 A
Voltage Rating 24 V (32 V max)
Isolation 500 Vac from output to chassis and output to
all other circuits
Signal Cable Length Must be limited to 1000 ft / 305 m (low
capacitance
16 AWG / 1.3 mm²)
Table 3-6. Programmable Relay Output Specifications
Analog Output
A single 4–20 mA output is provided on each module to indicate the speed
sensed by that module. The 4–20 mA range can be configured to any speed
range desired. The accuracy of the analog output is better than ±0.5% of 20 mA
over the temperature range of the product.
Shielded twisted pair cable is required when connecting to the analog outputs.
Analog Output Specifications
Number of Channels 1
Output Type 4–20 mA, isolated
Max Current Output 25 mA
Accuracy ±0.1% at 25 °C, ±0.5% over temperature
Resolution 12 bit
Response Time < 2 ms (2 to 20 mA)
Min Current Output 0 mA
Min Resistive
0
Max Resistive Load
500
at 25 mA
Isolation 500 Vac from output to chassis and output to
all other circuits
Signal Cable Length Must be limited to 1000 ft / 305 m (low
capacitance 16 AWG / 1.3 mm²)
Table 3-7. Analog Output Specifications
