Manual 26710V1 ProTechTPS Total Protection System
Woodward 83
Independent Trip Relay Models—Response Graphs

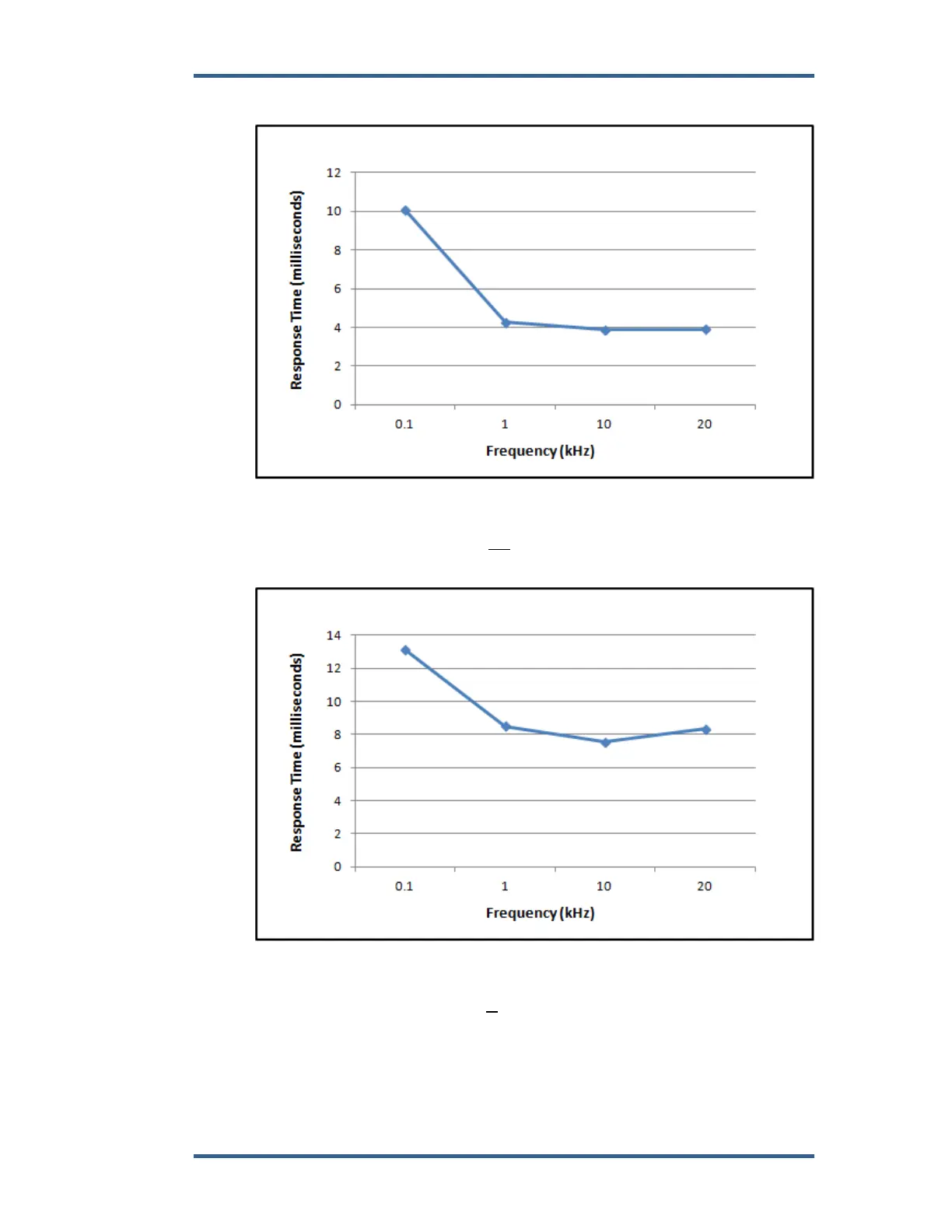

Figure 3-17. Total System Response Time Based on Sensed Frequency Level
for Independent Trip Relay Models when Speed Redundancy Manager Function
is not Configured
Figure 3-18. Total System Response Time Based on Sensed Frequency Level
for Independent Trip Relay Models when Speed Redundancy Manager Function
is Configured
