Voted Trip Relay Models—Response Graphs

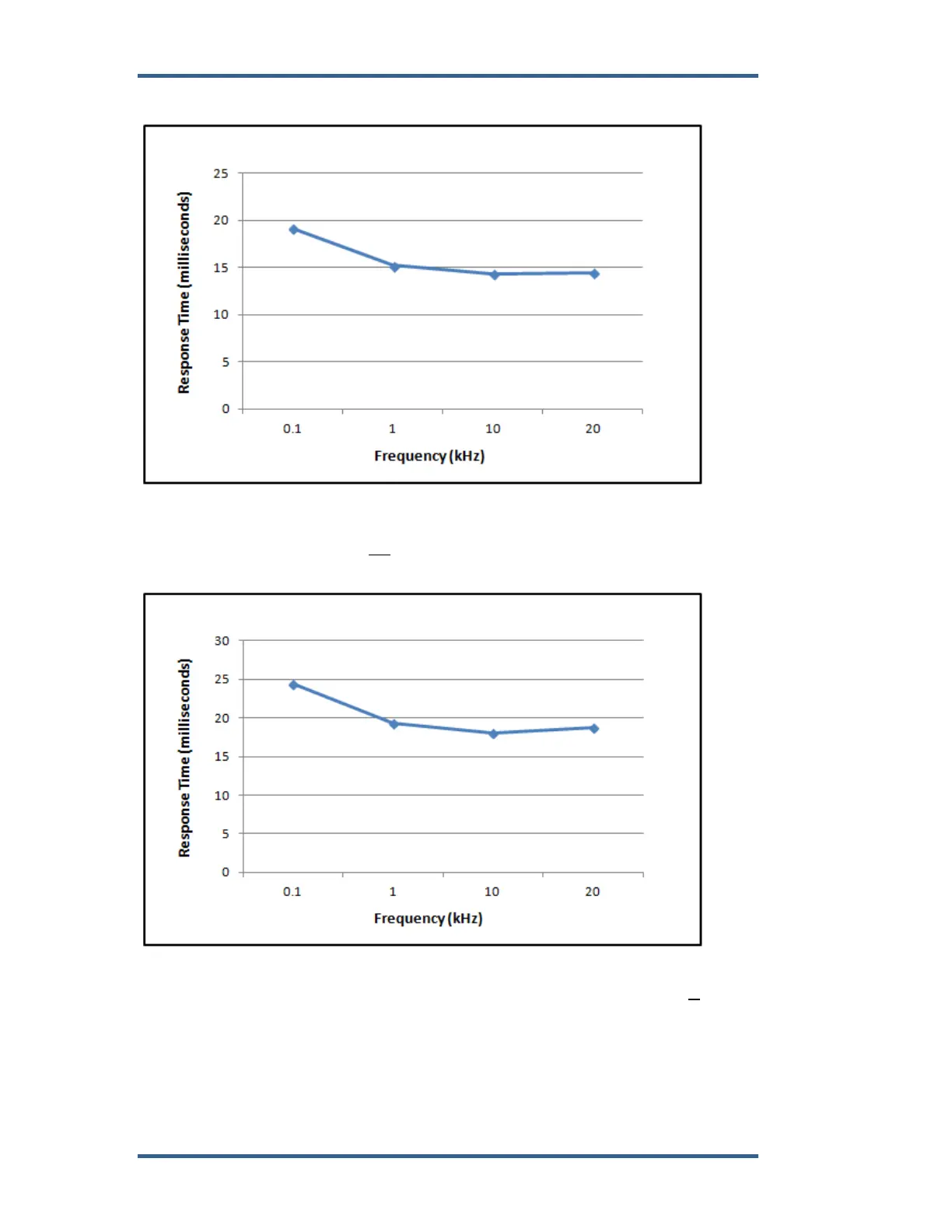

Figure 3-19. Total System Response Time Based on Sensed Frequency Level
for 2oo3 Voted Trip Relay Models when Speed Redundancy Manager Function is
not Configured
Figure 3-20. Total System Response Time Based on Sensed Frequency Level
for 2oo3 Voted Trip Relay Models when Speed Redundancy Manager Function is
Configured
