ProTechTPS Total Protection System Manual 26710V1
28 Woodward

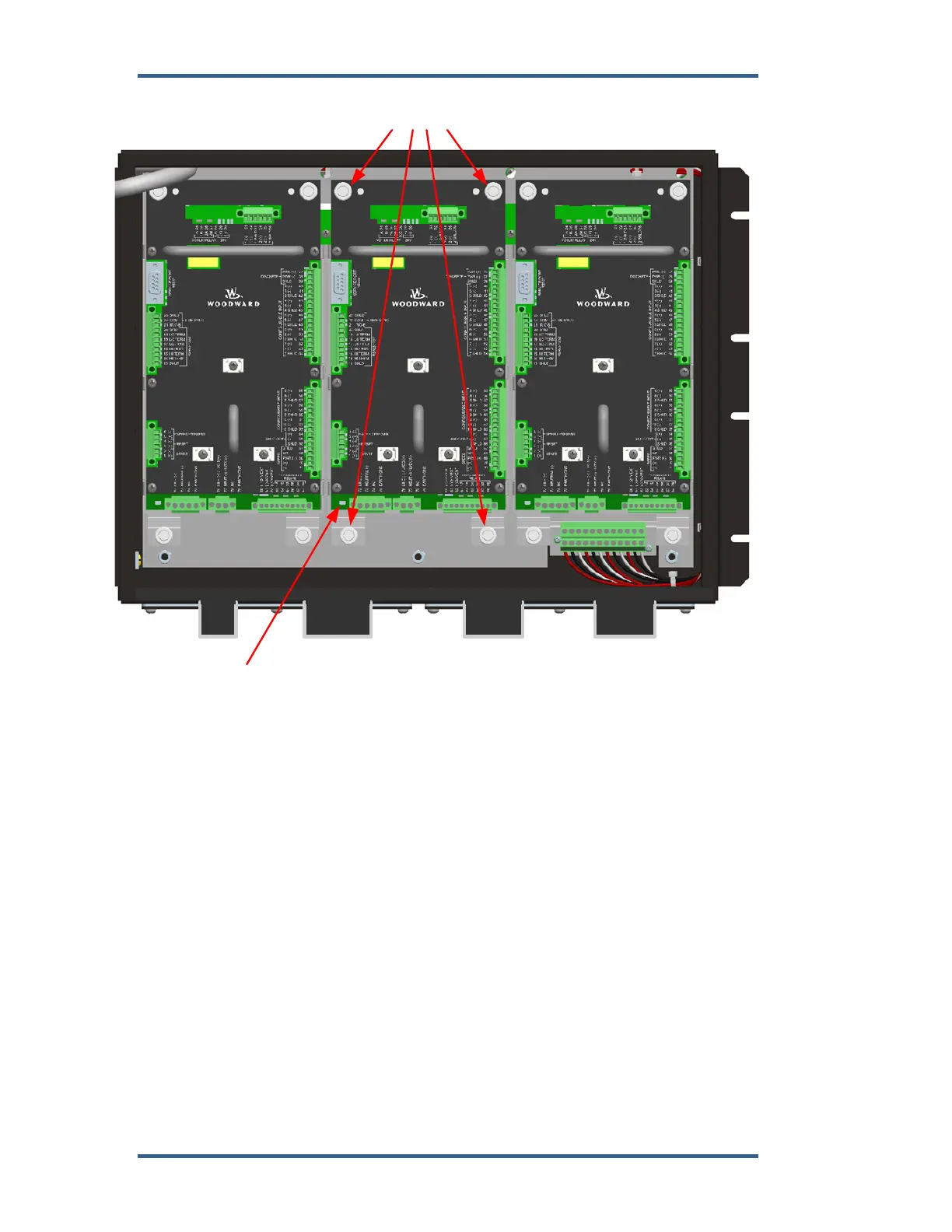

Power LED
4 Retaining Screws
Installation:
1. Insert module into slot by pressing firmly on handles. The module has
guides to assist in location.
2. Tighten 4 module retaining screws.
3. Install back panel.
4. Install 4 retaining screws.
5. Install terminal blocks.
6. Apply power and observe that the power LED is ON.
Mounting Location Considerations
Consider the following general requirements when selecting the mounting
location:
Adequate ventilation for cooling
A location that will provide an operating temperature range of –20 to +60 °C
(–4 to +140 °F)
The ProTechTPS weighs approximately 12 kg (26.5 lb)
Space for opening & servicing
Space for installing & removing panel mount covers
Space for installing cable strain relief as needed
Vertical orientation of the unit
