Woodward ProTech TPS - Figure 3-10. Discrete Input Example; Figure 3-11. Analog Input Example

ProTechTPS Total Protection System Manual 26710V1
66 Woodward
INPUT
INPUT #
MODE
Discrete
Input
Discrete Input #
NAME
24 Char.
Input Name
Discrete
Input
KEY:
PROGRAMMABLE
SETTINGS

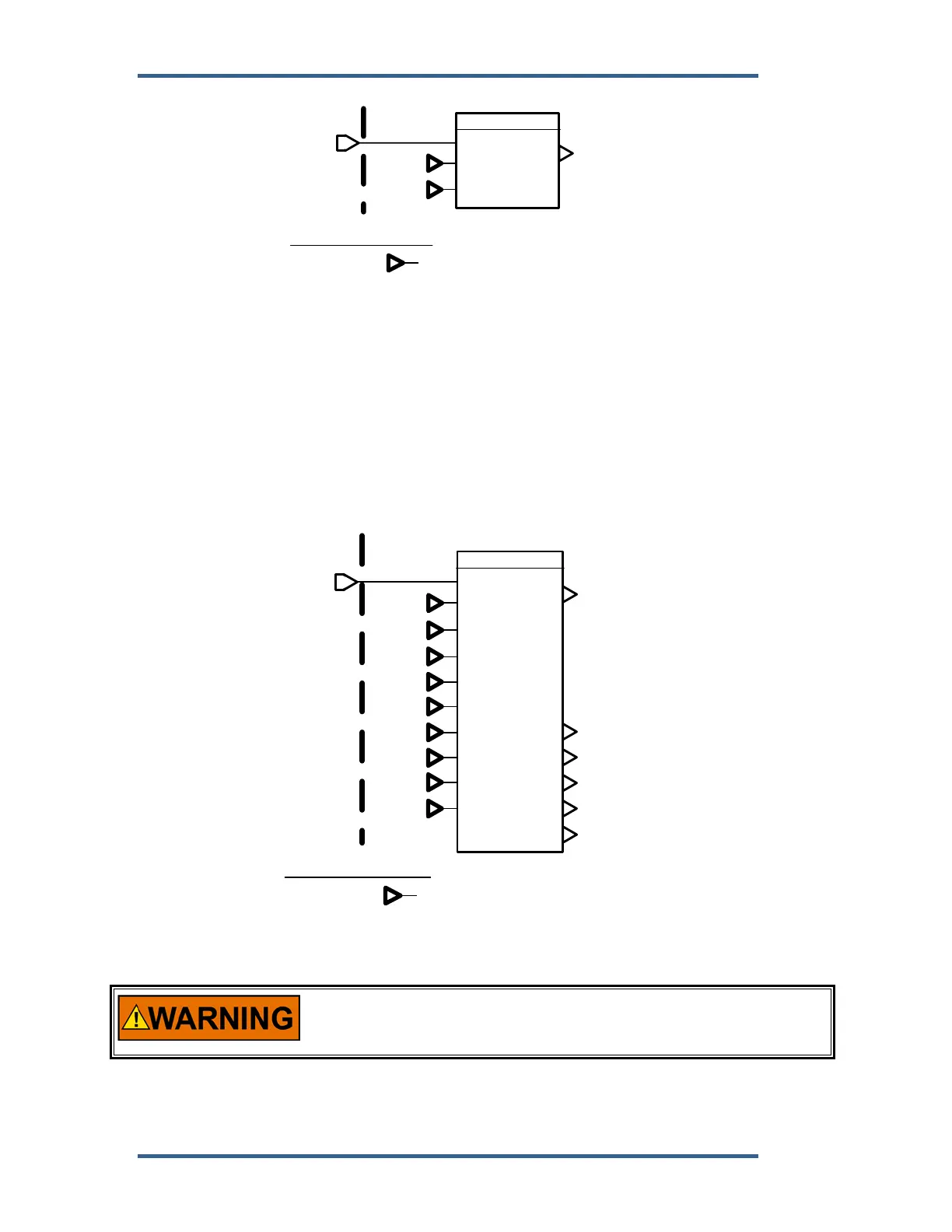

Figure 3-10. Discrete Input Example
Analog Input Configuration Example
When configured as an analog input, the channel accepts a 4–20 mA analog
signal. The accuracy of the analog input is better than ±0.5% of 20 mA over the
temperature range of the product. Engineering units and ranges are assigned to
the 4–20 mA current input values. Additionally, low-low (LoLo), low (Lo), high
(Hi), and high-high (HiHi) levels can be defined. The Boolean outputs associated
with these levels for the analog input can be used in the user configured
software. There is also a Range Error output to indicate that the Input is outside a
2–22 mA range.
INPUT
INPUT #
MODE
Analog
Input
4
20
Input 20mA
Value
HiHi
Analog Input #
Input 4mA
Value
NAME
24 Char.
Input Name
7 Char.
Unit Name
Unit
Hi
Lo
LoLo
Range Err
Hi
HiHi
Lo
LoLo
0
0
0
0
4-20 mA
Input
KEY:
PROGRAMMABLE
SETTINGS
Figure 3-11. Analog Input Example
The Analog scaling must match the actual unit hardware, or the
signal sensing and all association protection and functionality will
not work correctly.
